136-5999

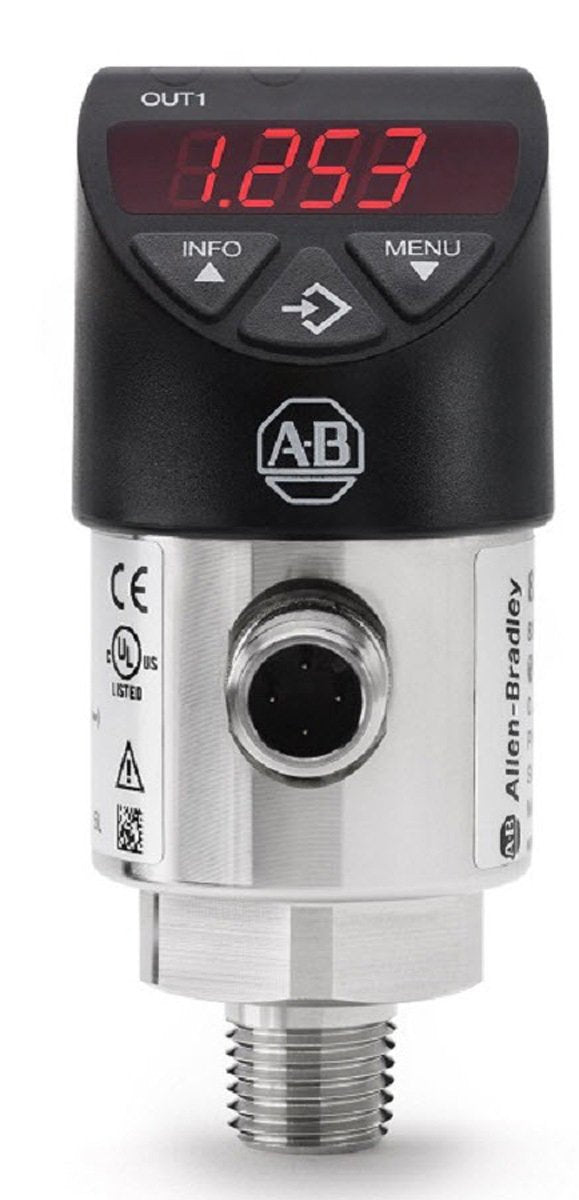

Allen Bradley 836P Solid-State IO-Link Pressure Sensor Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner. With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections. Features and Benefits Corrosion resistant 316L stainless steel sensing element Compact form factor LED display IP67 rated Rotatable housing and head Available in various process connections IO-Link communication protocol Allen Bradley Pressure Sensor, 450mA Current Rating, 15 to 35V DC Supply Voltage - 836P-D2GFGB14PA-D4 Need a device to measure the pressure of liquids, gases or steam? Choose this pressure sensor from Rockwell Automation's Allen Bradley range. It accurately monitors your system's pressure and presents the value in a clear way in red characters on its large LED display. The unit is made from durable and corrosion-resistant stainless steel, so it's suitable for harsh industrial applications. As this pressure sensor's housing and head are designed to rotate up to 320° and 330° respectively, you can set it up to suit the design of your equipment. Features & Benefits • Features the IO-LINK communication protocol to deliver data directly to your control system • Functions in a pressure range of 0 to 10 bar, so is suitable for heavy-duty applications • Accuracy level of ±1% to deliver consistent and reliable readings • G1/4 thread connector for easy compatibility with standard ports Standards and Certifications • cULus • CE • RoHS • EN 61326 • ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007 Does this pressure sensor work in extreme temperatures? Yes. Use the device has a wide operating temperature range between -20°C and +80°C, so it functions well in demanding environments.
