136-6001

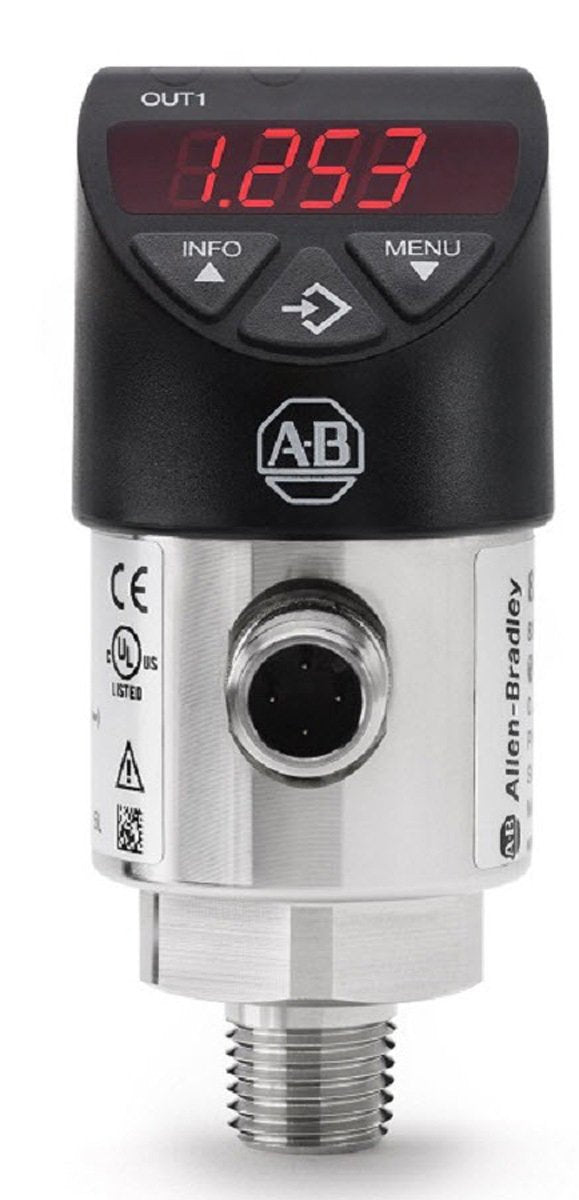

Allen Bradley 836P Solid-State IO-Link Pressure Sensor Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner. With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections. Features and Benefits Corrosion resistant 316L stainless steel sensing element Compact form factor LED display IP67 rated Rotatable housing and head Available in various process connections IO-Link communication protocol Allen Bradley Pressure Sensor, IO-LINK Communication Protocol, 1/4in NPT Process Connection - 836P-D2NMAA60PA-D4 Use this pressure sensor from Rockwell Automation's Allen Bradley range to accurately assess the pressure of gases, liquids or steam. Its built-in IO-Link communication protocol transmits data directly from the sensor to your control system, making data recording hassle-free. The unit displays measured values quickly on its easy-to-read LED display and delivers a high accuracy level of ±1%. It's made from stainless steel for corrosion and impact resistance. This pressure sensor is suitable for use in applications such as tank level detection, wastewater systems and CIP machines. Features & Benefits • IP67 rating indicates it's dust-tight and protected against water immersion to a depth of 1m • Functions in a wide pressure range between 0 and 10 bar for versatility • 330° rotatable head and 320° rotatable housing provide the flexibility needed to suit your setup • Supply voltage range of 15 to 35V DC for low-power systems Standards and Certifications • CE • RoHS • cULus • EN 61326 Does this device work in harsh conditions? Yes. It has a broad operating temperature range of -20°C to +80°C so it's suitable for use in challenging industrial environments.
