Terminal blocks

Test disconnect terminal block, nom. voltage: 1000 V, nominal current: 30 A, connection method: Push-in connection, Rated cross section: 6

Test disconnect terminal block, Note: the BE-RT… path extension is to be used for non-insulated cable lugs (see accessories)., nom.

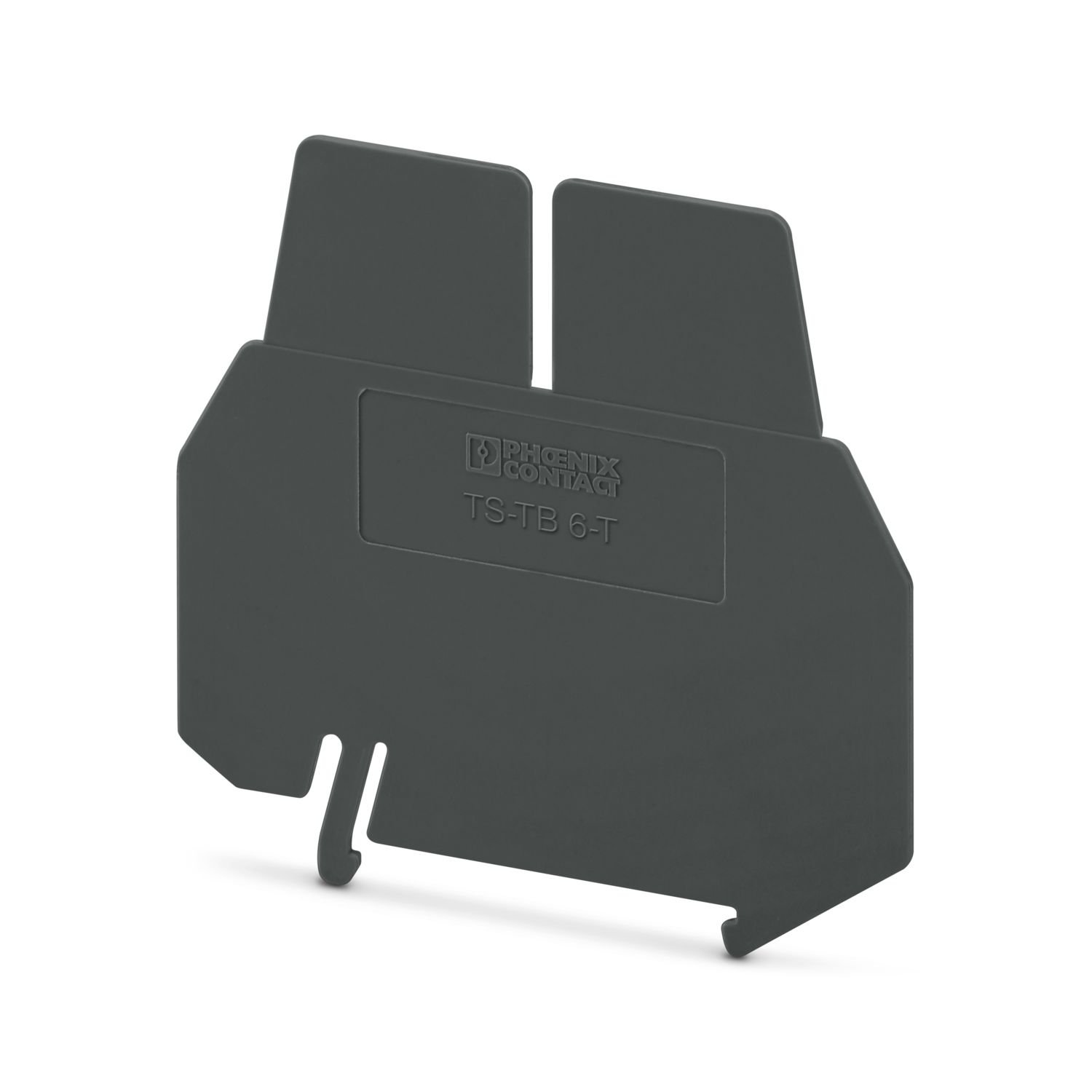

Separating plate, depth: 62.5 mm, width: 1 mm, height: 66.5 mm, color: dark gray

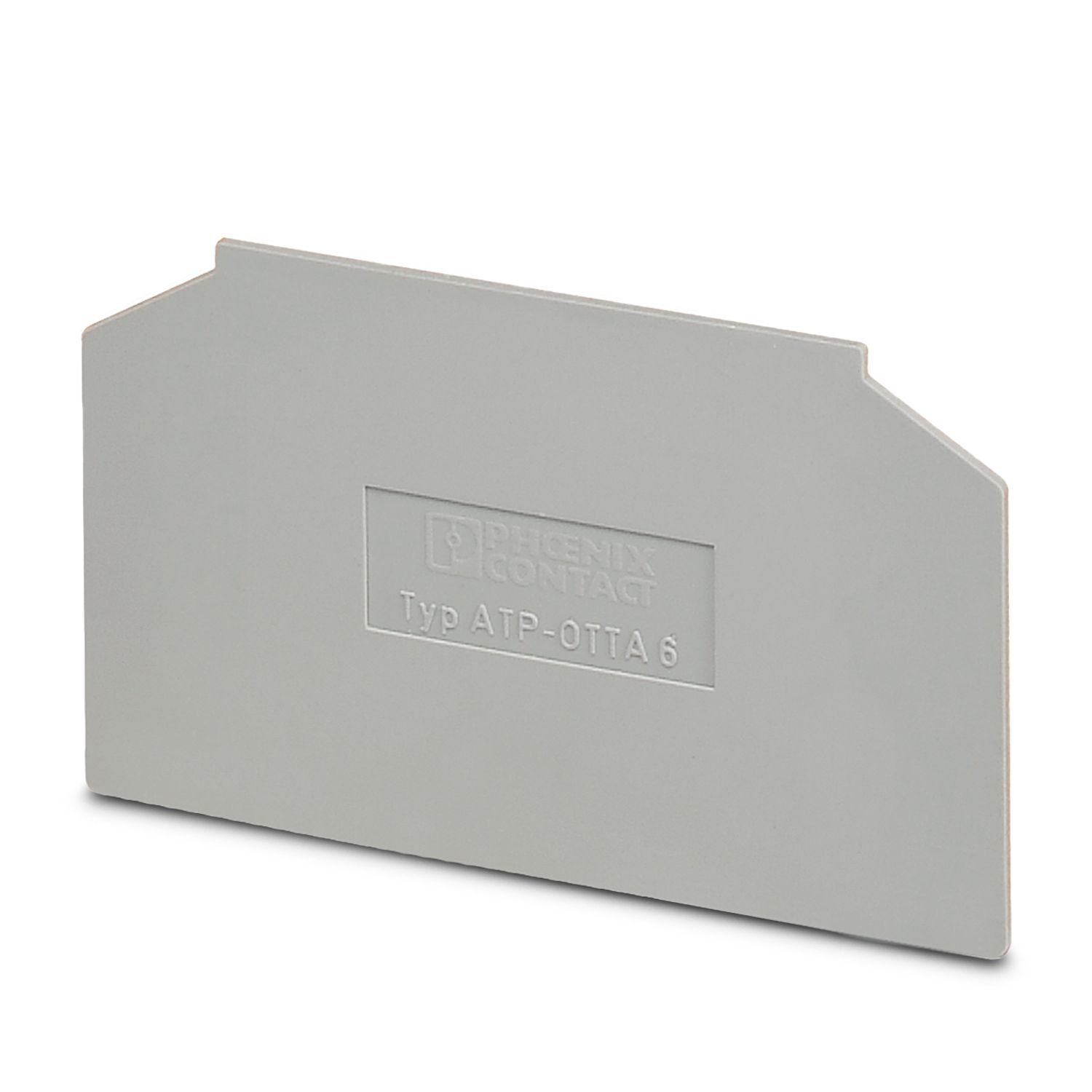

Partition plate, depth: 52.6 mm, width: 2 mm, height: 109.2 mm, color: gray

Partition plate, depth: 40.8 mm, width: 1.5 mm, height: 69 mm, color: gray

Partition plate, depth: 41.8 mm, width: 2 mm, height: 64.4 mm, color: gray

Initiator/actuator terminal block, nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level,

COMBI coupling, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 1, number of positions: 3, connection method: Push-in

Protective conductor terminal block, The max. load current must not be exceeded by the total current of all connected conductors.Current and

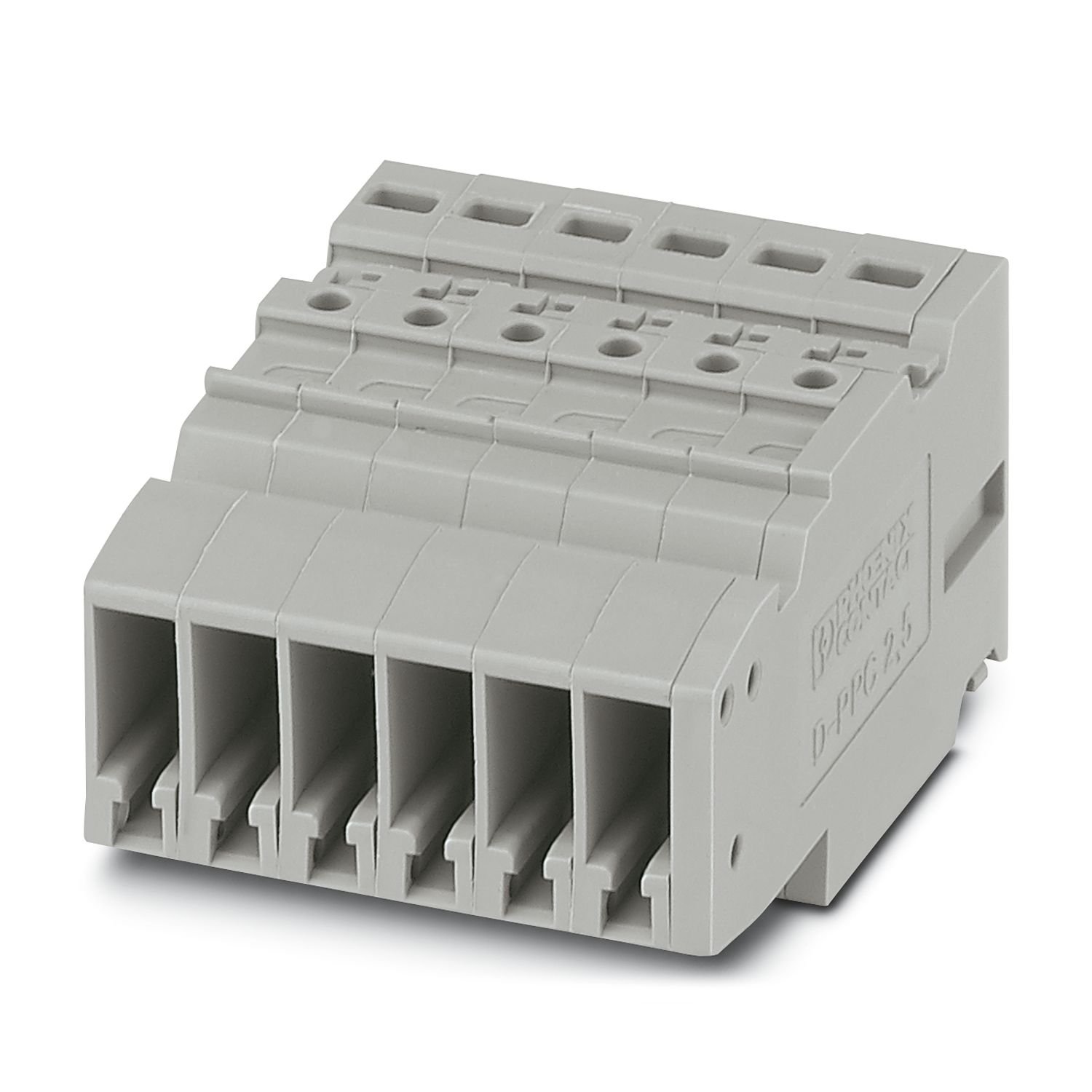

COMBI coupling, nom. voltage: 500 V, nominal current: 24 A, number of connections: 6, number of positions: 6, connection method: Push-in

COMBI coupling, nom. voltage: 500 V, nominal current: 24 A, number of connections: 1, number of positions: 12, connection method:

Plug, nom. voltage: 500 V, nominal current: 24 A, number of positions: 1, connection method: Screw connection, Rated cross section: 2.5 mm2,
