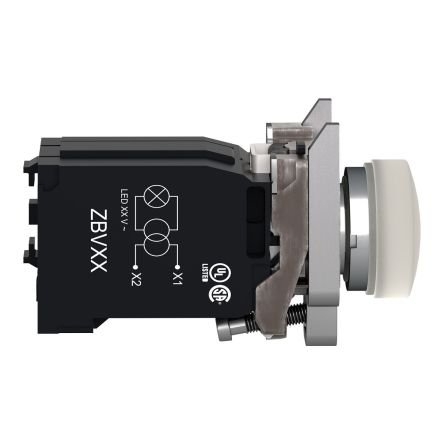

240V ac Schneider Electric, Harmony XB4, Panel Mount White Pilot Light Complete, 22mm Cutout, XB4BV41

Schneider Electric Harmony XB4 LED Pilot Light SeriesProviding functions to machines and panels, Schneider Electric combines performance with attractive design in the XB4 22 mm pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.Each LED pilot light has a 22 mm mounting diameter, in return they offer high vibration resistance, shake proof terminal screws and a shock protection level of up to IK06.Features and
Benefits:
• High vibration resistance with shake-proof terminal screws
• Shock protection
• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installationProtection ratings & Safety
features:
• Conformity with IEC, UL, CSA, CCC EAC, and JIS standards
• Group and
Category: 112 D-EX tD A21
• Certificate No. INERIS 04 ATEX 9004U
• CE marking and marine approvals
• Up to IP66, 67, 69, 69K, and type 4X protection ratings
• Up to IK06 shock protectionApplications – The XB4 series can be used for general purpose, Building and Infrastructure and Industry application, other applications
include:
• Machine and control panel
• Food and beverage
• Automotive
• Restaurants
• Commercial buildingsNoteManufacturers part number with EX denotation indicates EX rated product.Direct supply type will require separate purchase of appropriate BA9s incandescent lamp, neon or LED.Transformer types are supplied complete with BA9s incandescent.LED types are complete with integral LED light block.
