8-channel transmitter Liquiline CM448 | Endress Hauser

Specs at a glance

Input: 1 to 8x Memosens digital input
2x 0/4 to 20mA Input optional
2 to 4x Digital input optional
Output / communication: 2 to 8x 0/4 to 20 mA current outputs, alarmrelay
4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Ingress protection: IP66 / IP67

—————————————-

Field of application

Endress Hauser’s

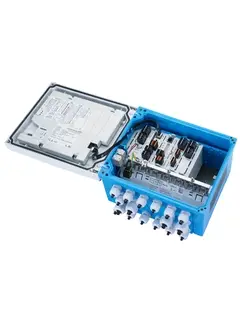

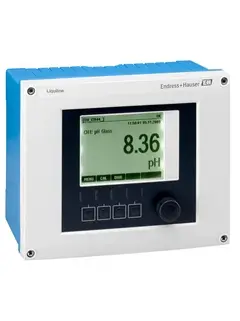

The Liquiline CM448 transmitter allows you to connect up to 8 Memosens sensors of your choice from over 12 measurement parameters. It offers automatic sensor recognition, simple operation, and standardized spare parts with all other devices of the Liquiline platform. With its inputs, outputs, controllers, and math modules, you can even control cleaning systems or dosing pumps. Heartbeat Technology helps you find the ideal balance between measuring point availability and maintenance costs.

• Food & Beverages
• Life Sciences
• Power & Energy
• Water & Wastewater
• Chemicals
• Marine
• 0/4…20 mA
• HART
• PROFIBUS DP
• Modbus RS485/RTU
• Modbus TCP
• EtherNet/IP
• PROFINET
• Webserver
