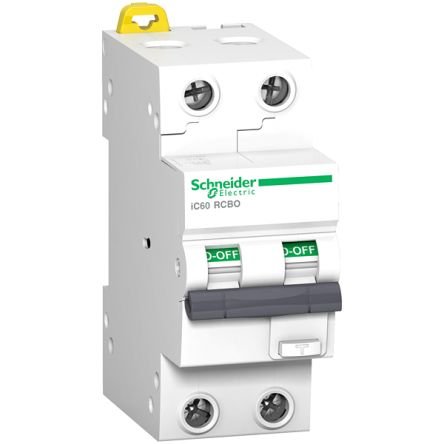

Acti9 Range Schneider Electric RCBO, 10A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, A9D27210

The Schneider Electric Acti9 iC60 RCBO is a modular residual current device with overcurrent protection. It is a 2P RCBO with 2 protected poles, a rated current of 10A and an operating voltage of 220VAC to 240VAC. The earth leakage protection class is A-SI with a sensitivity of 30mA. The earth leakage protection delay is instantaneous. The breaking capacity at 220VAC to 240VAC is 10000A according to EN/IEC 61009-2-1. The breaking capacity at 220VAC to 240VAC is 15kA according to EN/IEC 60947-2. Its unique Visitrip indicator reduces intervention time by indicating the faulty circuit.IP20 and IP40 protection ratedMercury freeRoHS compliantOvervoltage III category conforming to IEC 60364
