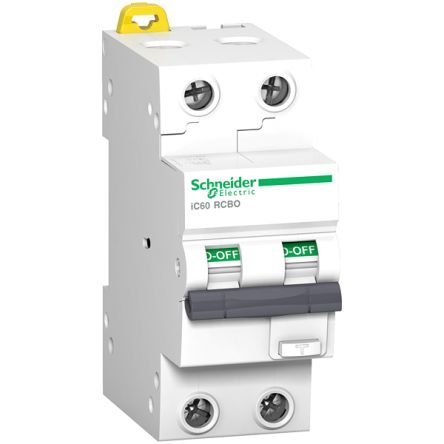

Schneider A9D27225 – RCBO, 25A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, Acti9 Range

The Schneider Electric Acti9 iC60 RCBO is a modular residual current breaker with overcurrent protection. It is a 2P RCBO with 2 protected poles, rated current is 25A, and operating voltage is 220VAC to 240VAC. The earth leakage protection class is A-SI type with a sensitivity of 30mA. The earth leakage protection time delay is instantaneous. Breaking capacity at 220VAC to 240VAC is 10000A according to EN/IEC 61009-2-1IP20 and IP40 protection ratedMercury freeRoHS compliantOvervoltage III category conforming to IEC 60364
