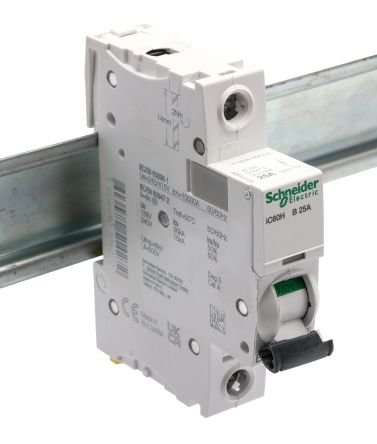

A9F53125 – Schneider Electric Acti 9 iC60H MCB, 1P, 25A Curve B, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

Schneider Electric iC60H Series Acti 9 MCB, 25A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) – A9F53125This MCB is a robust miniature circuit breaker designed for efficient electrical protection. With a current rating of 25A and a compact design featuring dimensions of 85mm in length, 18mm in width, and 78.5mm in depth, it is tailored to fit DIN rail mounts easily. This circuit breaker ensures safety in various applications by preventing overloads and short circuits.Features & Benefits
• Type B tripping mechanism protects low current circuits
• High breaking capacity of 10kA enhances safety
• Thermal-magnetic technology ensures instant response
• Screw terminal contacts support rigid and flexible wiresApplications
• Ideal for residential and commercial electrical installations
• Used in control systems for machinery and automation
• Suitable for protecting lighting circuits and power distribution
• Used for maintaining safety in industrial environmentsWhat is the maximum voltage rating for this circuit breaker?It supports a rated AC voltage range from 100 to 240 V and a rated DC voltage of 12 to 72 V. This allows versatility in different electrical systems while ensuring reliable operation.What environmental conditions can it withstand?It operates effectively in ambient temperatures ranging from -35°C to 70°C and maintains functionality in relative humidity levels of 95% at 55°C.How does the screw terminal contact enhance usability?The screw terminal accommodates wires from 1 to 25 mm² in both rigid and flexible formats, allowing for secure and sturdy connections in various applications.
