Breaking Capacity Schneider Electric Acti 9 iC60H MCB, 4P, 63A Curve C, 440V AC, 220 → 250V DC, 10 kA A9F54463

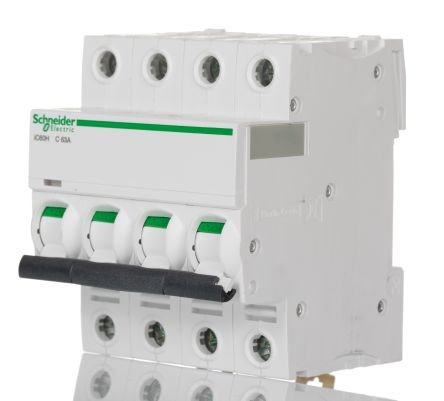

Schneider Electric iC60H Series Acti 9 MCB, 4 Poles, 63A Current Rating – A9F54463This MCB is a thermal-magnetic circuit breaker designed for high-performance protection in both AC and DC networks. It features a compact design with dimensions of 72mm in width, 85mm in height, and a depth of 78.5mm for space-efficient installation on DIN rails. This device is part of the Acti 9 range, combining reliable protection with a robust build to meet various electrical challenges.Features & Benefits
• Designed for 4 poles, providing comprehensive circuit protection
• Rated current of 63A ensures substantial load capacity
• Type C circuit breaker ideal for motor and transformer protection
• Exceptional breaking capacity of 10kA at 440V AC
• Thermal-magnetic tripping ensures consistent performance under overload conditionsApplications
• Used for protecting electrical installations in industrial setups
• Ideal for commercial buildings with diverse electrical loads
• Suitable for involving motors and inductive loads
• Used in automation systems requiring reliable circuit protectionWhat advantages does the 4-pole design bring to circuit management?The 4-pole design allows for greater flexibility in managing multi-phase systems and facilitates effective isolation of circuits during maintenance, ensuring enhanced safety.How does the thermal-magnetic feature enhance circuit protection?This feature delivers reliable overload and short-circuit protection by combining thermal delay with instantaneous magnetic tripping, providing swift and effective responses to fault conditions.What is the significance of the breaking capacity rating?The breaking capacity rating explains the maximum fault current the device can safely interrupt without causing damage, thus ensuring reliability even under fault conditions within electrical systems.
