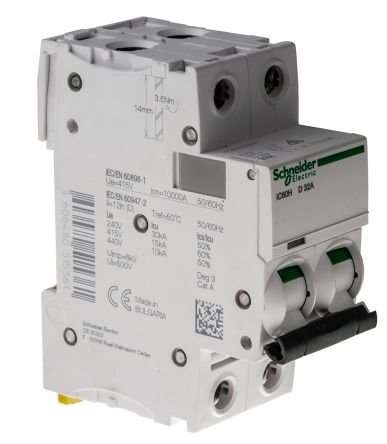

Electric Acti Schneider 9 iC60H MCB, 2P, 32A Curve D, 440V AC, 100 → 133V DC, 10 kA Breaking Capacity – A9F55232

Schneider Electric iC60H Series Acti 9 MCB, 32A Current Rating, Type D Tripping Characteristics – A9F55232This miniature circuit breaker Certified to operate on both AC and DC networks, it offers a current rating of 32A and features a robust thermal-magnetic tripping mechanism. With a compact profile of 36mm in width, 85mm in height, and a depth of 78.5mm, this 2 pole MCB can be easily mounted on a DIN rail for added convenience.Features & Benefits
• High breaking capacity of up to 10kA at 440V AC
• Efficient Type D MCB suitable for diverse requirement
• Supports a wide voltage range 12 to 440 V AC/DC
• Thermal-magnetic technology ensures effective circuit protection
• Designed for easy clip-on installation on DIN railsApplications
• Integrated into industrial electrical systems for circuit protection
• Utilised in residential settings to safeguard electrical circuits
• Suitable for automation systems, ensuring safe operation
• Used in power distribution panels for enhanced reliabilityWhat is the tripping mechanism used in this device?The circuit breaker features a thermal-magnetic tripping mechanism, which combines thermal and magnetic effects to provide effective protection against overloads and short circuits.Can this circuit breaker handle different voltage levels?Yes, it supports a voltage range from 12 V to 440 V for both AC and DC operations, making it versatile for various electrical environments.How does the breaking capacity enhance its functionality?The high breaking capacity ensures that the device can safely interrupt fault currents without sustaining damage, thereby protecting the overall electrical system.What kind of signalling features does it have?The circuit breaker includes a local trip indicator for quick fault identification, enhancing convenience during maintenance checks.
