Electric Acti9 Schneider A9F9 MCB, 1P, 1A Curve K, 500V AC, 100 kA Breaking Capacity – A9F95101

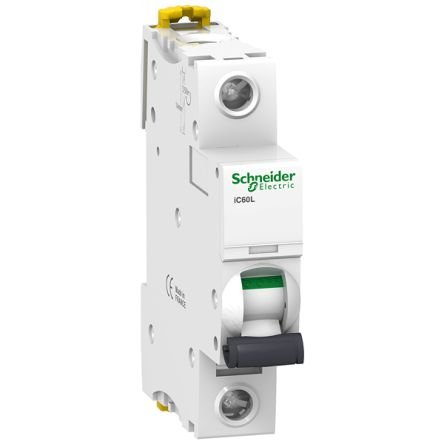

The Schneider Electric Acti9 iC60L MCB is a low voltage miniature circuit breaker. It has 1P with 1 protected pole, rated current 1A and K tripping curve. The rated short circuit breaking capacity goes up to 100kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 15000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.Combine short circuit and overload currents protectionVisitrip system for fast detection of faulty outgoers for shorter repair timesVisiSafe system for offering enhanced security when it comes to circuit protectionOption to add auxiliaries and remote monitoring and residual current device
