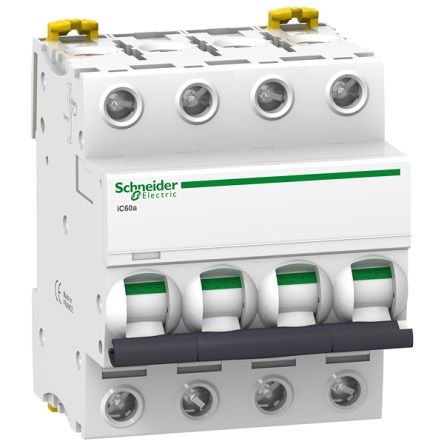

A9F95401 – Schneider Electric Acti9 Acti9 iC60 MCB, 4P, 1A Curve K, 500V AC, 70 KA Breaking Capacity

The Schneider Electric MCB is a low voltage miniature circuit breaker (MCB). It has 4P with 4 protected poles, rated current 1A and K tripping curve. The rated short circuit breaking capacity goes up to 100kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 15000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker is for protection against short circuit and overload current in all applications. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.IP20 protection ratedEN 60947-2
