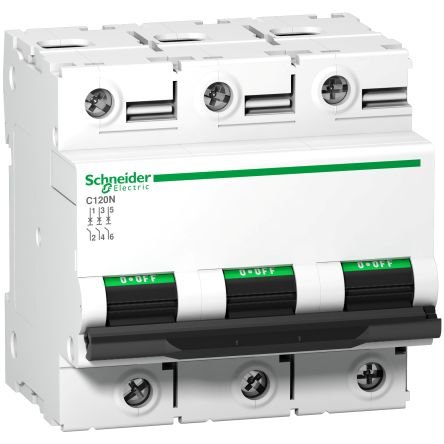

Schneider A9N18349 – Acti 9 A9N1 MCB, 3P, 80A Curve B

The Schneider Electric Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 80A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation.Control type ToggleLocal signalling ON/OFF indicationMounting mode Clip-onMounting support 35 mm symmetrical DIN rail
