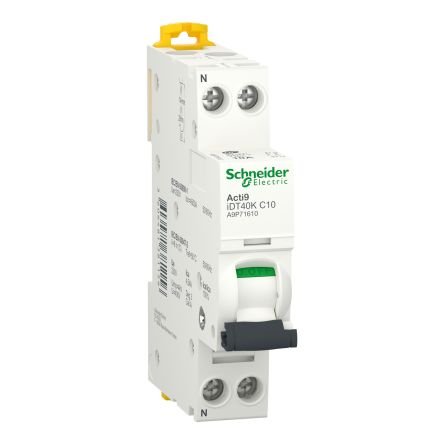

Electric Acti9 Schneider Acti9 iDT40K MCB, 1+N, 10A Curve C, 230V AC, 4.5 kA Breaking Capacity – A9P71610

Schneider Electric MCB, 10A Current Rating, 230V Rated AC Voltage – A9P71610This miniature circuit breaker (MCB) is part of the Acti9 range and is designed for effective circuit protection in electrical distribution systems. With a current rating of 10A and compact dimensions of 85mm in length, 18mm in width, and 74mm in depth, it provides a robust solution for various electrical applications. The device employs a thermal-magnetic tripping mechanism, ensuring reliable operation and safety across diverse environments.Features & Benefits
• Designed for 1P+N circuits, increasing versatility
• High breaking capacity of 4500A diminishes the risk of faults
• Thermal-magnetic mechanism allows for precise tripping
• Suitable for isolation, enhancing safety standards
• Tunnel terminal connections facilitate installationApplications
• Suitable for electrical installations in residential and commercial buildings
• Ideal for protecting circuits within electrical distribution boards
• Appropriate for use in automation and mechanical systems
• Commonly used in environments with varying temperature rangesCan it handle high fault currents effectively?Yes, it can manage up to 4500A of fault current.Will it operate in extreme temperatures?Yes, it functions within ambient temperatures of -25°C to 70°C.Is it easy to install?Yes, the tunnel terminal connections streamline the installation process.Can the device provide isolation?Yes, it is suitable for isolation according to standards.
