ABLS1A24100 – Schneider Electric ABLS1A Switched Mode DIN Rail Power Supply, 100→240 V ac / 140→340V dc ac, dc Input,

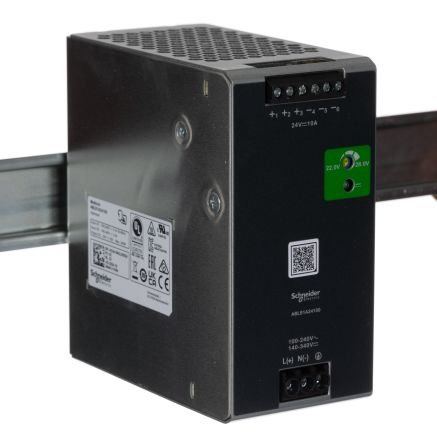

Schneider Electric ABLS1A Series DIN Rail Power Supply, 24V DC Output Voltage, 10A Output Current – ABLS1A24100This DIN Rail Power Supply is designed for various applications in the electrical and automation sectors. Featuring a compact size of 117.6mm x 123.6mm x 60mm, it is optimised to deliver a regulated output of 24V DC with an output current of 10A. This power supply accommodates both AC and DC input voltages ranging from 100 to 240V AC and 140 to 340V DC, enhancing its versatility.Features & Benefits
• High efficiency rating of 88% at 230V AC
• Compact design suitable for standard DIN rail mounting
• Integrated fuse for input protection, ensuring safety
• Superior load regulation below 1% for reliable performance
• Automatic reset technology for overload and short-circuit protection
• Extended operating temperature range from -20°C to 70°CApplications
• Ideal for communication and control systems
• Employed in audio and video
• Suitable for general electronic device operation
• Effective for power distribution in machineryWhat input voltage range can be accepted by this unit?The unit can accept an input voltage from 100 to 240V AC and 140 to 340V DC, making it versatile for various applications without needing additional configurations.How does the product manage overload conditions?It features automatic reset technology that protects against overloads and short circuits, allowing for uninterrupted operation when conditions return to normal.Can this power supply be used in high-temperature environments?Yes, it operates effectively in temperatures ranging from -20°C to 70°C with a current derating, allowing it to function in various industrial settings without compromising performance.What type of connections does it support?The device supports screw connections for both input and output terminals, accommodating a range of cable sizes to ensure secure and reliable connectivity.Certificate No.CE, CUL listed, CUL recognized, RCM, CB Scheme, EAC, KC.StandardsIP20, EN 62368-1, EN/IEC 61204-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, UL 62368- CSA C22.2 No 62368-1,,UL 508, CSA C22.2 No 107.1, EN/IEC 62368-1 .
