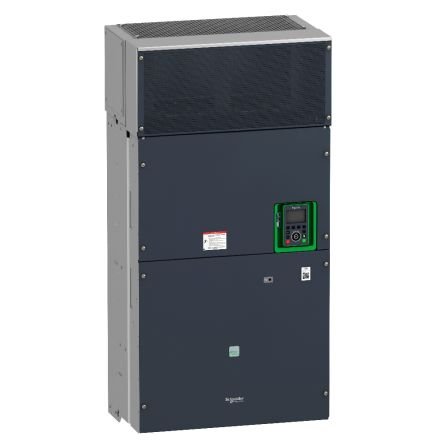

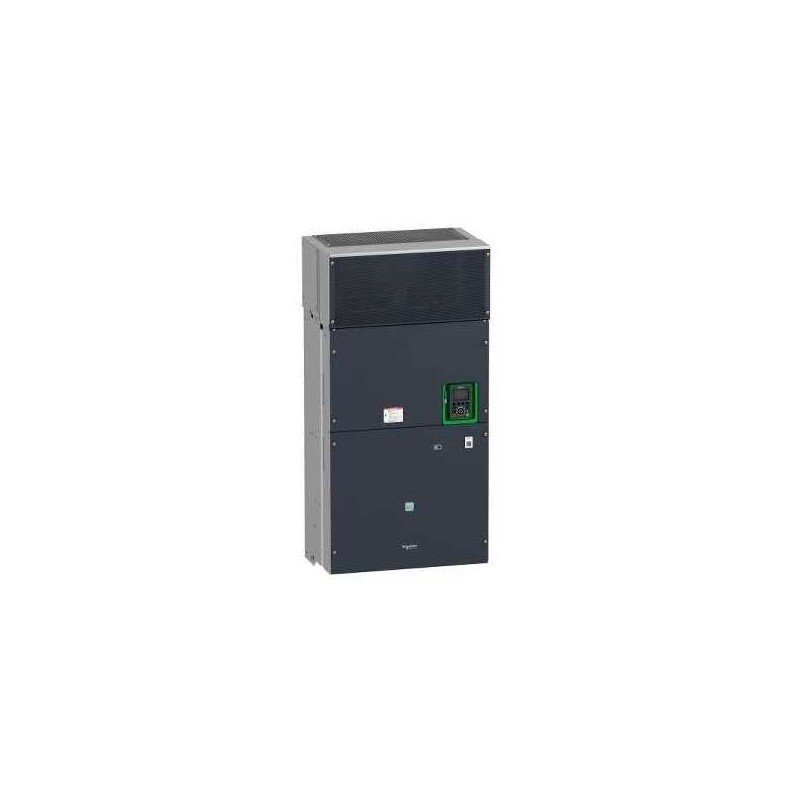

Schneider ATV630C31N4 ATVPROcess 315KW 400V/480V speed controller

Product series
:
Altivar Process ATV600
Product or component type
:
Variable Speed ​​Driver
Product Special Application
:
Process and infrastructure
Product group
:
ATV630
Model
:
Standard type
Product destination
:
Asynchronous motors
Synchronous motors
IP protection degree
:
IEC 61800-5-1 suitable for IP00
IEC 60529 suitable for IP00
IP21 (Kit with VW3A9113) suitable for IEC 61800-5-1
IP21 (Kit with VW3A9113) suitable for IEC 60529
[US] Nominal Nutrition Voltage
:
380 … 480 V
Type of cooling
:
Forced convection
Feeding frequency
:
50 … 60 Hz – 5 … 5
[US] Nominal Nutrition Voltage
:
380 … 480 V – 15 … 10
Motor Power KW
:
315 kW (Normal requirement)
250 kW (heavy condition)
Motor Power HP
:
500 HP Normal Condition
400 HP Heavy condition
Line flow
:
569 A -DE 380 V (Normal Condition)
461 A -DE 480 V (Normal Condition)
457 A -DE 380 V (heavy condition)
375 A -DE 480 V (heavy condition)
Possible line ISC
:
50 KA
Visible power
:
480 V in 351 kVA (Normal Condition)
480 V (heavy condition) in 286 kVA
Continuous output current
:
Normal requirement for 616 a -de 2.5 kHz
Heavy condition for 481 a -de 2.5 kHz
Maximum temporary current
:
60 S during 678 A (normal condition)
60 s (heavy condition) during 722
Asynchronous motor control profile
:
Fixed torque standard
Optimum Moment Mode
Variable moment standard
Speed ​​control device output frequency
:
0.1 500 Hz
Nominal switching frequency
:
2.5 khz
Switching frequency
:
2.5 … 8 kHz depreciation factor
2 … 8 khz adjustable
Security function
:
Sto (Secure Torque Closing) SIL 3
Digital entrance logic
:
16 Pre -adjustable speed
Communication Port Protocol
:
Modbus Series
Ethernet
MODBUS TCP
Option card
:
Yuva A: Communication module, Profibus DP v1
Yuva A: Communication Module, Profinet
Yuva A: Communication module, Devicenet
Yuva A: Communication module, Modbus TCP Ethernet IP
Yuva A: Communication module, Canopen Daisy Chain RJ45
Yuva A: Communication Module, Canopen Sub-D 9
Yuva A: Communication module, Canopen screw terminals
Yuva A Yuva B: Digital and Analog G ç Expansion Module
Yuva A Yuva B: Output Relay Expanding Module
Yuva A: Communication Module, Ethernet IP MODBUS TCP MD-Link
Communication Module, Bacnet MS Tp
Communication Module, Ethernet PowerLink
Complementary features
Assembly type
:
Wall -mounted
Network Network of Phase
:
3 phases
Digital output number
:
0
Digital output type
:
Relay outputs R1A, R1B, R1C 250 V AC 3000 MA
Relay outputs R1A, R1B, R1C 30 V DC 3000 MA
Relay outputs R2A, R2C 250 V AC 5000 MA
Relay outputs R2A, R2C 30 V DC 5000 MA
Relay outputs R3A, R3C 250 V AC 5000 MA
Relay outputs R3A, R3C 30 V DC 5000 MA
Output voltage
:
power feeding voltage
Permitable Temporary current strengthening
:
60 S during 1.1 x (normal condition)
60 S during 1.5 x (heavy condition)
Motor slip compensation
:
Adjustable
Compressible
AUTOMATICS ALL KINDING LOAD
Continuous magnetic engine law is not available
Acceleration and slowing ramps
:
Linear adjustable separately from 0.01 … 9999 S
Physical interface
:
Ethernet
2 wire RS 485
Braking until it stops
:
With DC Injection
Protection type
:
Thermal protection: engine
Secure torque closing: engine
Motor Phase Cutting: Motor
Thermal protection: driver
Secure torque closing: Driver
Overheating: Driver
Over Current Between Output Phase and Earth: Driver
Overload of the output voltage: Driver
Short Circuit Protection: Driver
Motor Phase Cutting: Driver
Excessive voltages in DC data: Driver
Line Feeding Excess Tension: Driver
Low Feeding Low Voltage: Driver
Line Feeding Phase Loss: Driver
Excessive Speed: Driver
Cutting in the control circuit: drive
Transmission rate
:
10, 100 Mbits
4800 BPS, 9600 BPS, 19200 BPS, 38.4 KBPS
Frequency resolution
:
Screen Unit: 0.1 Hz
Analog Login: 0.012 50 Hz
Transmission frame
:
Rtu
Electric connection
:
Control: Removable Screw Terminals 0.5 … 1.5 mm² AWG 20 … AWG 16
Line side: screw terminal 4 x 185 mm² 3 x 350 kcmil
Engine: screw terminal 4 x 185 mm² 3 x 350 kcmil
Type of the connector
:
Ethernet MODBUS TCP for RJ45 (on Remote Graphic Terminal)
Modbus Series for RJ45 (on Remote Graphic Terminal)
Data format
:
8 bit, configurable single, double or without parity
Polarization type
:
No impedance
Replacement mode
:
Half duplex , full duplex, automatic agreement ethernet modbus tcp
Number of Addresses
:
Modbus series for 1 247
Access method
:
SLAVE MODBUS TCP
Supply
:
External Feeding for Digital Inputs: 24 V DC (19 30 V), 1.25 MA, Protection Type: Overload and Short Circuit Protection
Internal feeding for reference potentiometer (1 – 10 kohm): 10,5 V DC – 5, 10 MA, protection type: overload and short circuit protection
Digital inlets and internal feeding for Sto: 24 V DC (21 27 V), 200 MA, Protection Type: Overload and Short Circuit Protection
Local signaling
:
Local Diagnostic: 3 LED
Internal Communication Status: 3 LED (Two Color)
Communication Module Status: 4 LED (Two Color)
Existence of Tension: 1 LED (Red)
Width
:
598 mm
Height
:
1195 mm
Depth
:
380 mm
Product weight
:
203 kg
Number of analog inputs
:
3
Analog input type
:
AI1, AI2, AI3 Software-Related Voltage: 0 … 10 V DC, Impedance: 31.5 Kohm, resolution 12 bit
AI1, AI2, AI3 Software-Related Current: 0 … 20 MA, Impedance: 250 OHM, resolution 12 bit
AI2 voltage analog input: – 10 … 10 V DC, Impedance: 31.5 Kohm, resolution 12 bit
Number of digital inputs
:
8
Digital entry type
:
DI7, DI8 programmable as a coup entrance: 0 30 kHz, 24 V dc (30 V)
Entrance compatibility
:
DI1 … DI6: Digital Entry Level 1 PLC
DI5, DI6: Digital Entry Level 1 PLC
Stoa, Stob: Digital Entry Level 1 PLC
Digital entrance logic
:
Positive Logic (Source) (DI1 … DI8), 5 V (Status 0), 11 V (Status 1)
Negative Logic (Block) (DI1 … DI8), 16 V (Status 0), 10 V (Status 1)
Analog output number
:
2
Analog output type
:
Software-Released Voltage AQ1, AQ2: 0 … 10 V DC Impedance 470 ohm, resolution 10 bit
Software-Related Current AQ1, AQ2: 0 … 20 MA, resolution 10 bit
Software-Released Current DQ-, DQ: 30 V DC
Software-Released Current DQ-, DQ: 100 MA
Sampling time
:
2 ms – 0.5 msn (DI1 … DI4) – Digital Entry
5 ms – 1 ms (DI5, DI6) – Digital Entry
5 ms – 0.1 msn (AI1, AI2, AI3) – Analog Introduction
10 ms – 1 ms (AO1) – analog output
Truth
:
– 0.6 AI1, AI2, AI3 60 C analog input for temperature change
– 1 AO1, AO2 60 C analog output for temperature change
Linearity error
:
AI1, AI2, AI3: Analog input for maximum value – 0.15
AO1, AO2: – Analog output for 0.2
Relay output number
:
3
Relay output type
:
Configurable Relay Lojiki R1: Electrical durability of error relay 100000 Cycles
Configurable Relay Lojiki R2: Electrical resistance to Sequence Relay 100000 Cycles
Configurable Relay Logiki R3: Electrical resistance to Sequence Relay 100000 Cycles
Renovation time
:
Relay output (R1, R2, R3): 5 ms ( – 0.5 msn)
Minimum switching current
:
Relay output R1, R2, R3: 5 MA -DE 24 V DC
Maximum switching current
:
Relay output R1, R2, R3 resistant load, cos phi 1: 3 a -de 250 V AC
Relay output R1, R2, R3 resistant load, cos phi 1: 3 a -de 30 V dc
Relay output R1, R2, R3 inductive load, cos phi 0.4 and l r 7 ms: 2 A -de 250 V AC
Relay output R1, R2, R3 inductive load, cos phi 0.4 and l r 7 ms: 2 a -de 30 V dc
Insulation
:
Terminals between power and control
Maximum output frequency
:
500 KHz
Maximum input current
:
569,0 A
Motor power range AC-3
:
250 500 kW 380 440 V 3 phase
250 500 kW -480 500 V 3 phase
Quantity per set
:
1
Preservation installation
:
Wall -mounted
