Average temperature measurement Prothermo NMT539

Specs at a glance

Accuracy: +/- 0.1 °C
Max. process pressure (static): 0 bar…0.5 bar
(0 psi…7.25 psi)
Operating temperature range: Standard:
-40 °C…100 °C
Optional:
-55 °C…235 °C
Water Bottom spec.:
-40 °C…100 °C
Cyrogenic:
-170 °C…60 °C
Max. immersion length on request: 40 m (131.2 ft)

—————————————-

Field of application

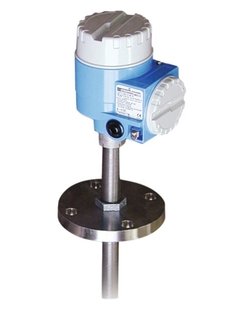

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.

• Process connection: Flanges
• Temperature: -40 to +100°C (-40 to +212°F)
• Measuring distance: 40m (131.2ft)
• Accuracy: ± 0.1°C
• International explosion protection certificates
