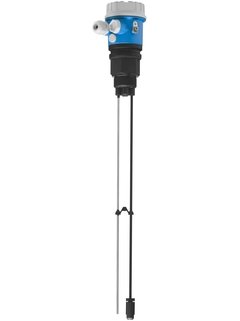

Capacitance Level measurement Liquicap FMI21 | Endress Hauser

Specs at a glance

Accuracy: < 1% Process temperature: -40 °C ... 100 °C (-40 °F ... 212 °F) Process pressure / max. overpressure limit: Vacuum ... 10 bar (Vacuum ... 145 psi) Max. measurement distance: 2.5 m (8 ft) Main wetted parts: Probe rods: 316L/1.4404 / PP Option: carbon fibre PP coated ---------------------------------------- Field of application Endress Hauser's Liquicap FMI21 is a simple and cost-effective rod probe for continuous level measurement for conductive liquids. High quality non-corrosive materials (carbon fibre, stainless steel) make it suitable even for aggressive liquids (e.g. acids and alkalis). Used in conjunction with the Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions. • Process connection: Thread • Process pressure: Vacuum to 10bar (vacuum to 145psi) • Measuring range: Up to 2.5m (8ft) • Temperature: -40 to +100°C (-40 to +212°F) • International explosion protection certificates, overfill prevention WHG
