Capacitance Point level detection Solicap FTI56 | Endress Hauser

Specs at a glance

Process temperature: -50°C … 180°C
(-58°F … 356°F)
Process pressure / max. overpressure limit: Vacuum … 25 bar
(Vacuum … 362 psi)

—————————————-

Field of application

Endress Hauser’s

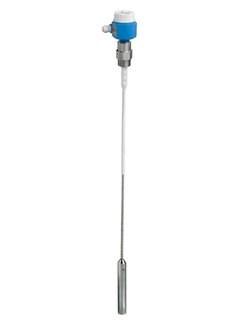

Solicap FTI56 is a fully/partly insulated and robust rope probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high tensile loads up to 60kN.

• Process connections: Flanges and threads
• Measurement range: 500 to 22,000mm (20 to 866″)
• Temperature: -50 to +180°C (-58 to +356°F)
• Pressure: -1 to +25bar (-14.5 to +363psi)
• International explosion protection certificates, SIL
