Capacitance Point level detection Solicap FTI77 | Endress Hauser

Specs at a glance

Process temperature: -50°C … 400°C
(-58°F … 752°F)
Process pressure / max. overpressure limit: Vacuum … 10 bar
(Vacuum … 145 psi)

—————————————-

Field of application

Endress Hauser’s

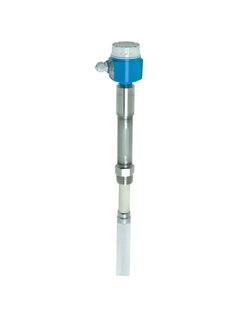

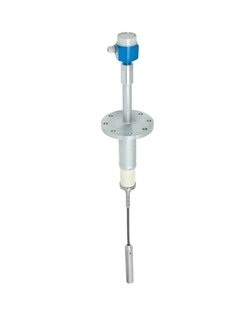

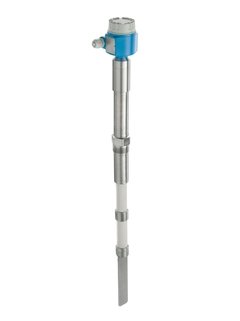

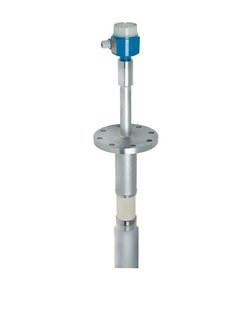

Solicap FTI77 is a partly insulated sword/rope probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used in applications with very high lateral loads (up to 800Nm, sword version), high temperatures and abrasive media.

• Process connections: Flanges and threads
• Measurement range: 200 to 20,000mm (20 to 787″)
• Temperature: -50 to +400°C (-58 to +752°F)
• Pressure: -1 to +10bar (-14.5 to +145psi)
• International explosion protection certificates, SIL
