Specs at a glance
Accuracy: Standard:
up to 0.05 %
Platinum:
up to 0.025 %
Process temperature: -40°C…+150°C
(-40°F…+302°F)
Pressure measuring range: 100 mbar…40 bar
(1.5 psi…600 psi)
Main wetted parts: Ceraphire ceramic
FKM, EPDM, HNBR,
Perlast, Kalrez, Chemraz
Material process membrane: Ceramic
Measuring cell: 100 mbar….40 bar
(1.5 psi…600 psi)
—————————————-
Field of application
Endress Hauser’s

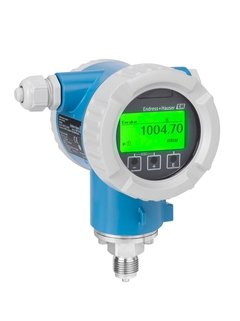

This transmitter belongs to the new Cerabar generation. The device is robust and can be remotely controlled via app on a tablet using a secure Bluetooth connection. It allows condition based maintenance as well.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.
• Pressure measuring range: up to 40 bar (600 psi)
• Fully vacuum resistant up to +150°C (302°F) process temperature
• Accuracy: up to +/- 0.025%
