Specs at a glance
Accuracy: Standard:
up to 0.075 %
Platinum
up to 0.055 %
Process temperature: Standard:
-40°C…+125°C
(-40°F…+257°F)

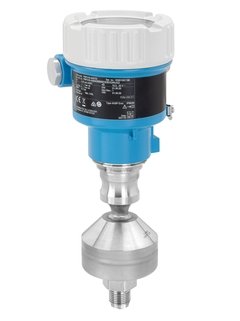

Diaphragm seal:
-40°C…+400°C
(-40°F…+752°F)
Pressure measuring range: 400 mbar… 400 bar
(6psi…6,000psi)
Main wetted parts: 316L, AlloyC,
Tantal, Monel,
PTFE
Material process membrane: 316L, AlloyC,
Tantal, Monel,
PTFE
Measuring cell: 400 mbar…400 bar
(6psi…6,000psi)
—————————————-
Field of application
Endress Hauser’s
This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g easiest local or remote operation and condition-based maintenance which promotes better management of scheduled plant shutdowns.
The software is designed to simplify the handling. Intuitive and clear wizards guide you through the commissioning and proof testing of the device. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
• Pressure measuring range: up to 400 bar (6000 psi)
• Process temperatures up to 400°C (752 °F) with diaphragm seal
• Accuracy: up to +/- 0.055%
