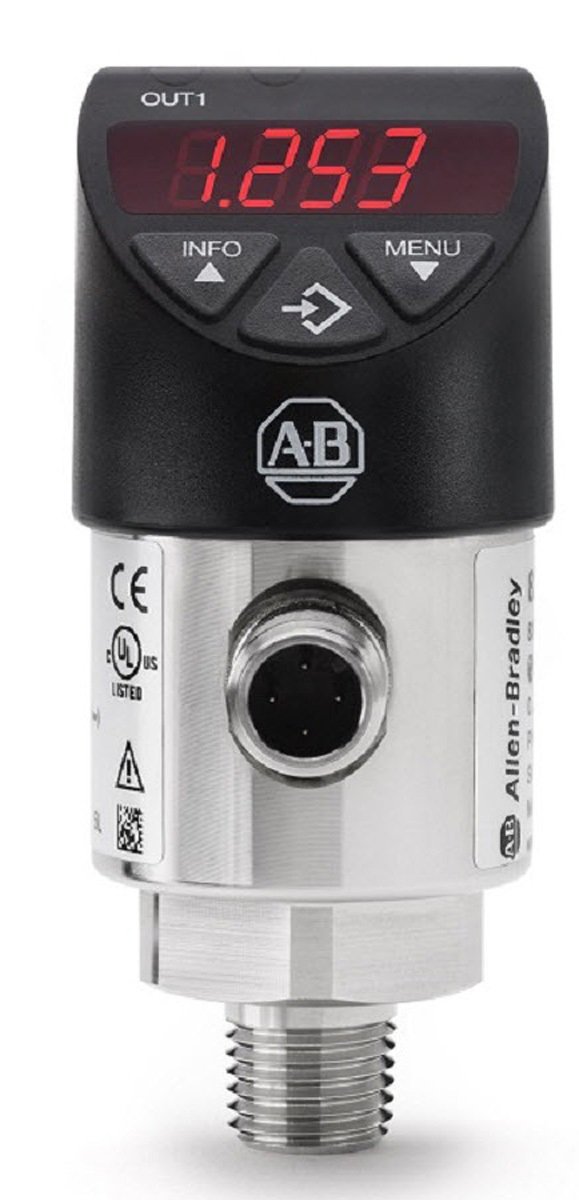

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.
With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1…551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.
Features and Benefits
Corrosion resistant 316L stainless steel sensing element
Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol
Allen Bradley Pressure Sensor, Vibration Resistant, -20°C to +80°C Operating Temperature – 836P-D2NFGA36PA-D4
Choose this pressure sensor from Rockwell Automation’s Allen Bradley range to measure the pressure level of fluid in your machinery. The built-in IO-Link interface lets you easily integrate it into your control system for quick data analysis. As the unit comes with protection against short circuits and reverse polarity, you can be sure it won’t suffer damage in the event of a current surge or incorrect installation. It’s resistant to shock and vibration, so withstands the demanding conditions you’d expect in an industrial environment. A service life of 100 million cycles means you can rely on this sensor for long-term performance.
Features & Benefits
• Wide operating temperature range between -20°C and +80°C for safe use in challenging environments
• IP67 rating means it’s dustproof and protected against immersion in water between 15cm and 1m
• Rotatable housing design for easy setup
• Integrated LED display is easy to read, even in low light
• Accuracy rating of ±1% for precise measurements
Standards and Certifications
• EN 61326
• cULus
• RoHs
• EMC
• CE
What type of media can I use with this pressure sensor?
You can use this pressure sensor to monitor the pressure levels of fluid, gas and steam, making it a versatile choice.
There are no reviews yet.
