Commercial Allen Bradley PLC I/O Module for Use with SLC 500 Series, Analogue

Thermocouple/mV Input Module

Suitable for thermocouple temperature sensors or strain gauges with millivolt output signals.

4 or 8 inputs individually configurable for thermocouple type, °C, °F, ±50mV, or 100mV range
Suit J, K, T, E, R, S, B and N type thermocouples
Provides cold junction compensation

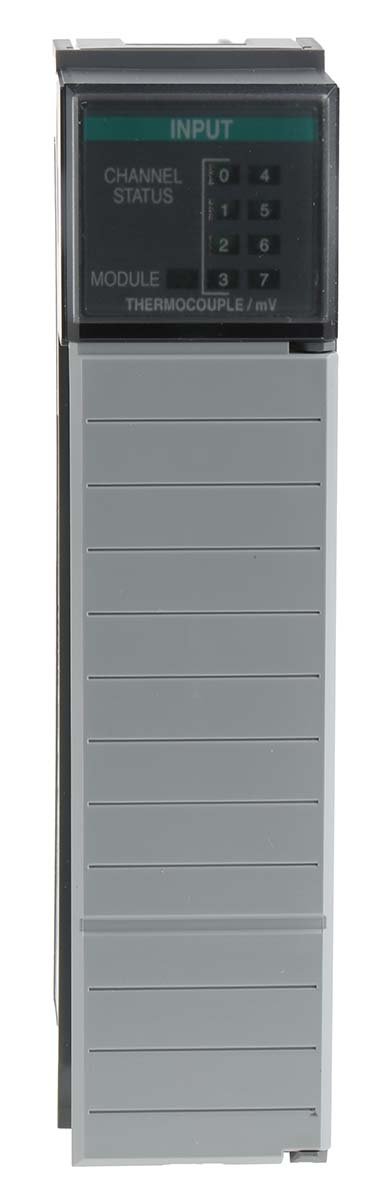

Allen Bradley Analogue Input Module

The Allen Bradley analogue input module is suitable for thermocouple temperature sensors or strain gauges with millivolts output signals. This module is designed for use with SLC 500 series PLCs. It supports different thermocouples like J, K, T, E, R, S, B and N-type. This module contains diagnostic LEDs that help you identify the source of problems that may occur during power-up or normal operation.

Features and Benefits

Provides cold junction compensation
Ambient operating temperature ranges between 0°C and 60°C
8 inputs individually configurable for thermocouple type, °C, °F, ±50mV or 100mV range

Applications

Industrial automation
Robotics
Automobile industry

Certifications

ANSI/ESD S20.20:2014
BSEN 61340-5-1:2007
