Specs at a glance
Measuring range: 100 µS/cm – 2000 mS/cm
Process temperature: max. 140°C (max. 30 min.)
284°F (max. 30 min.)
Process pressure: max. 12 bar (90°C)
(174 psi(194°F))
—————————————-
Field of application
Endress Hauser’s

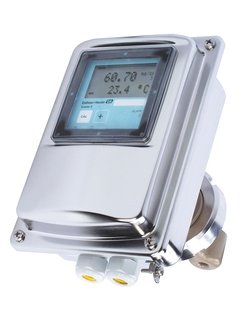

Smartec CLD132 is a measuring system for inductive conductivity. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.
• Alkaline/acid concentration control in remaking
• Phase separation of product/water and product/product mixtures in pipe systems
• Product monitoring
• 0/4…20mA
• HART
• PROFIBUS DP
• PROFIBUS PA
