Specs at a glance
Measuring range: 100 µS/cm to 2000 mS/cm
Cell constant k : 6.3 1/cm
Process temperature: Max. 125 °C (max. 257 °F)
For sterilization: up to 150 °C for max. 60 min
(up to 302 °F for max. 60 min)
Process pressure: 12 bar abs up to 90 °C
(174 psi abs up to 194 °F)
—————————————-
Field of application
Endress Hauser’s

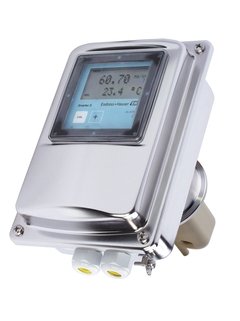

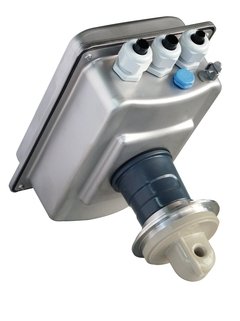

Smartec CLD134 is a measuring system for inductive conductivity in the food & beverage and life sciences industries. The combination of a transmitter and a sensor is interference-free and especially easy-to-use. It meets the highest hygienic and sterile demands thanks to its food-grade virgin PEEK body, its jointless and creviceless design and its hygienic certificates. Smartec CLD134 is therefore the ideal package to ensure the highest safety and quality of your products and processes.
• Phase separation of product/water and product/product mixtures in pipe systems
• Control of CIP processes in the return channel
• Concentration control in remaking of CIP cleaning agents
• Product monitoring in pipe systems, bottling plants, quality assurance
• Leakage monitoring
• 0/4…20mA
• HART
• PROFIBUS DP
• PROFIBUS PA
