Converter, IECEx Schneider Electric Harmony Analog Series Analogue RMCA61BD

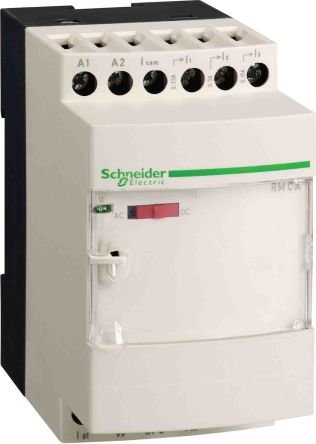

Schneider Electric RMCA61BDThis voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0The Schneider Electric Zelio Logic smart relays are designed for use in small automated systems. They are used in both the industrial and commercial sectors. Their compact size and ease of setup make them a competitive alternative to solutions based on cabled logic or specific cards.standards = IEC 60947-1, IEC 60584-1product certifications= CSA, UL,GL
