Specs at a glance
Process temperature: max. 80°C (176°F)
Process pressure: For manual assembly operation : max 2bar (29psi)
Medium pressure : max. 10bar (145psi)
—————————————-
Field of application
Endress Hauser’s

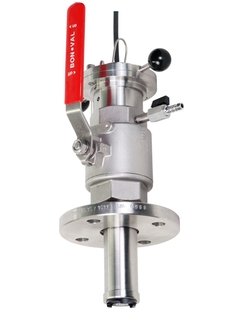

Cleanfit COA451 is a retractable assembly for all fields of dissolved oxygen measurements. It is equipped with a stop bolt, O-ring seals and a ball valve, enabling complete isolation of process and sensor compartment. This allows you to access the sensor without interrupting the process or emptying the pipe or tank. Better still, benefit from increased process and operational safety and significantly reduced maintenance effort across the whole measuring point.
• Wastewater treatment plants:
– O2 control in the aeration basin
– Process water treatment and monitoring
• Water works:
– Status monitoring of drinking water
– Water quality monitoring in rivers, lakes or seas
• Utilities of all industries:
– O2 control in the biological treatment
– Process water treatment and monitoring
• Fish farming:
– O2 control for optimum growth conditions
