Schneider Electric Acti 9 DT40 MCB 1 PoleActi 9 DT40 series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtimeBenefits and FeaturesDownstream circuit is always safeClass-2
insulation: ensures continuous protection for both operators and unqualified persons. Insulated terminals (IP20) Highly durable with robust connections that provide twice the standard tightening torque. Provide greater continuity of service thanks to VisiTrip. Double clip for dismounting with comb busbar in place5 pc- 5/64’’ hex key wrenches with polybagStandardsIEC 60898 – Relates to Low Voltage Circuit Breakers for use in household and similarInstallations. In the UK traditionally known as miniature circuit breakers (MCB’s).IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similarInstallations. In the UK traditionally known as moulded case circuit breakers (MCCB’s) and also air circuit breakers (ACB’s).
Q: What is the differences in the Tripping Curves B, C, and D?
A: Curve
B:
Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables Curve
C:
Tripping: 5 to 10 times the rated
currentApplications: protection of circuits and general applications Curve
D:
Tripping: 10 to 14 times the rated current

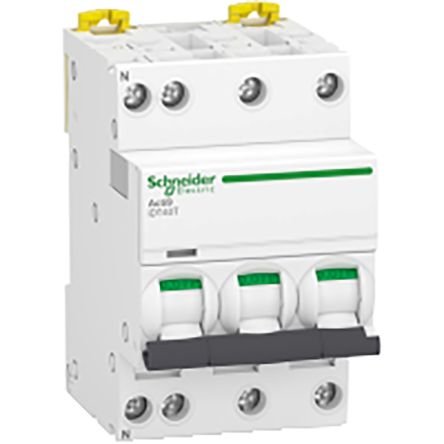

Applications: protection of high surge circuits, welders, transformers and motorsA9P22720 Acti9 iDT40T MCB Miniature Circuit Breaker IP20 / IP40 3 Pole + N.Short product name IDT40TDistribution applications.3 x Protected poles.Left Neutral position.AC Network.Curve code C.Isolation to EN/IEC 60947-2.NF Quality label.[Ue] rated operational voltage 400 V AC 50 Hz.With Contact position indicator.Toggle control type.Trip indicator ON/OFF.Clip-On Mounting (DIN rail).6 x 9mm Pitches.MCB is White.Weight 340 g.Can be padlocked.IP20 to IEC 60529, IP40 (modular) to IEC 60529.Breaking.4500 A Icn at 400 V AC 50 Hz conforming to EN/IEC 60898-1.6 kA Icu at 400 V AC 50 Hz conforming to EN/IEC 60947-2.Durability.Mechanical 20,000 Cycles.Electrical 20,000 Cycles.Terminal connections.Top and Bottom Screw connection.Tunnel terminal (top or bottom) 1…10 mm² flexible.Tunnel terminal (top or bottom) 1…16 mm² rigid.ApprovalsCE, BV, RINA, DNV.StandardsEN/IEC 60947-2, EN/IEC 60898-1.
