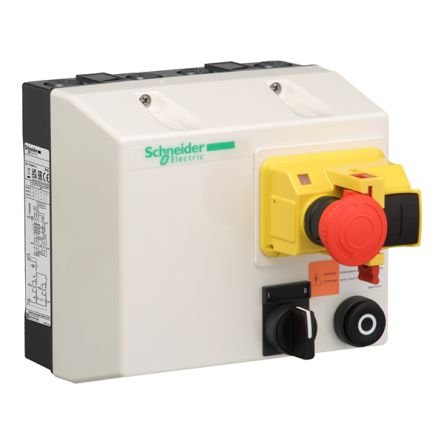

Electric TeSys Schneider Motor Starter, DOL, 0.75 kW, 660 V, 3 Phase, IP55 – LJ8K06Q707

The Schneider Electric Enclosed DOL Reversing Starter is designed for safety applications and operates under the AC-3 utilization category. It includes a reversing contactor, control transformer, and circuit breaker. The motor power is 0.75 kW at 380/400 V AC, 50 Hz, with a thermal protection adjustment range of 1.6 to 2.5 A. The control circuit voltage is 24 V AC, 50/60 Hz. The control type features a black push-button for stop (O), a 2-position selector switch for start (black I-II), and a red mushroom head push-button for emergency stop.IEC 60204 1 and IEC 60947 4 1 certifiedmade of polycarbonateIP55 conforming to IEC 60529IK07 conforming to IEC 60529
