Specs at a glance
Measured variables: CH4, CO, CO2, H2, H2O, He, N2O, NH3, NO, NO2, O2, SO2
Hydrocarbons (e.g. C2H2), halogenated hydrocarbons (e.g. CH2Cl2) and other gases upon request
Ambient temperature range: +5 °C … +45 °C
—————————————-
Field of application
Endress Hauser’s

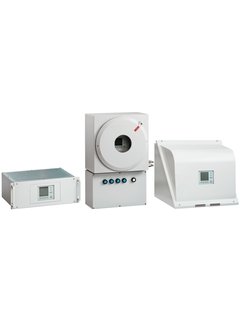

The GMS800 is a product family of extractive gas analyzers which can measure more than 60 different gas components. The GMS800 is characterized by its modular design: 6 analyzing modules, one gas module, I/O modules and a control unit. Standardized 19” plug-in housings can be used for economical system integration. In harsh industrial environments, wall-mounted housings with approvals for Ex-zones according to ATEX are used.
• Emission monitoring according to EN 15267 and process gas measurements, even in explosion-hazardous areas
• Emission monitoring with very low concentrations
• Measurement of sulfur compounds in process gases
• Measurement of very low concentration in hydrogen or hydrocarbons
• 6 different analyzer modules
• 4 different types of enclosures
• Gas module with sample gas pump and/or control sensors
• New enclosure type for easy and quick integration
• Remote diagnosis via Ethernet with SOPAS ET software
Device properties:
