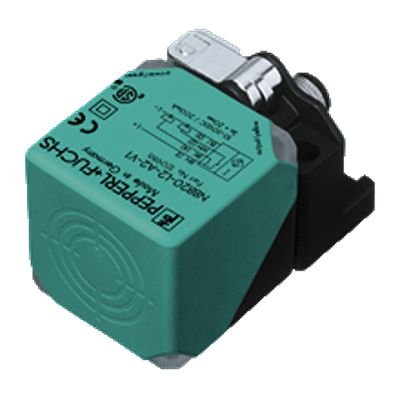

The Pepperl + Fuchs Inductive Sensor features a complementary switching function with a PNP output type and DC output polarity. It is designed for non-flush installation and offers a rated operating distance (sn) of 40 mm. The assured operating distance (sa) ranges from 0 to 32.4 mm, while the actual operating distance (sr) is between 36 and 44 mm. It operates within a voltage range of 10 to 30 V DC and supports a switching frequency of up to 180 Hz. The sensor includes reverse polarity protection, pulsing short-circuit protection, and has a typical hysteresis of 5%. It features a voltage drop (Ud) of less than or equal to 2 V and supports an operating current (IL) of 0 to 200 mA.
40 mm non-flush
Sensor head bidirectional and rotatable
4-wire DC
Quick mounting bracket
4-way LED indicator
