Industrial Allen Bradley 836P Series Pressure Sensor, 0bar Min, 400bar Max, 4 → 20 mA, Analogue, PNP-NO/NC Output, Relative

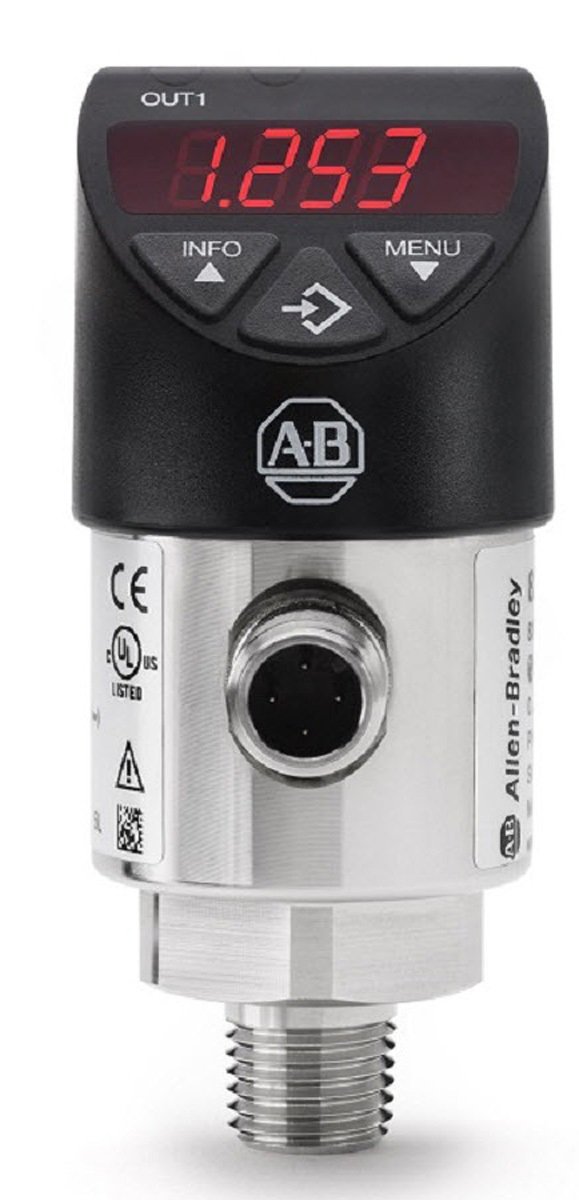

Allen Bradley 836P Solid-State IO-Link Pressure Sensor

Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.

With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1…551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.

Features and Benefits

Corrosion resistant 316L stainless steel sensing element

Compact form factor

LED display

IP67 rated

Rotatable housing and head

Available in various process connections

IO-Link communication protocol

Allen Bradley Pressure Sensor, 50g Shock Resistance, 500V DC Insulation Voltage – 836P-D2NFGC58PA-D4

For precise monitoring of high-pressure equipment in your workplace, choose this pressure sensor from Rockwell Automation’s Allen Bradley range. With a maximum measurement limit of 400 bar, it’s a practical choice for heavy-duty applications. Thanks to stainless steel housing, it can withstand corrosion and impact, so you can rest assured of long-term performance even in rugged environments. For easy assessment, the unit comes with a 180° rotatable LED display screen that shows measured readings. You’ll find this switch used in various applications, from aviation to marine industries.

Features & Benefits

• Broad operating temperature range of -20°C to +80°C for use in demanding conditions
• IP67 rating means that it’s fully protected against dust and water
• Service life of 100 million switching cycles for long-term operation
• IO-Link protocol compatible for easy integration into a control system
• Supply voltage of 15 to 35V DC for use in low-voltage applications

Standards and Certifications

• CE
• cULus
• RoHS

How do I mount this pressure sensor?

To mount this unit, simply fasten it to your equipment using the NPT 1/4” female connector and secure it with a spanner. It’s designed for vertical mounting.
