Industrial Allen Bradley Contrast Sensors 12 mm, White LED IO-Link, Push-Pull, 25 mA, 10 → 30 V dc, IP67, IP69K

Bulletin 42JT VisiSight Miniature Photoelectric Sensors

Allen Bradley 42JT VisiSight photoelectric sensors offer a small rectangular package with visible light beam for ease of alignment and industry standard mounting hole spacing. Each model offers PNP or NPN and light operate or dark operate outputs. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

Features and Benefits

IO-Link communication

Class 1 “”Eye Safe”” red laser beam

Auto PNP/NPN output

Teach push button for sensitivity and LO/DO selection

IP69K and ECOLAB rated enclosure

Visible red LED light source for ease of alignment

Clear object detection

Colour and contrast detection

Mounting hole spacing of 25.4 mm

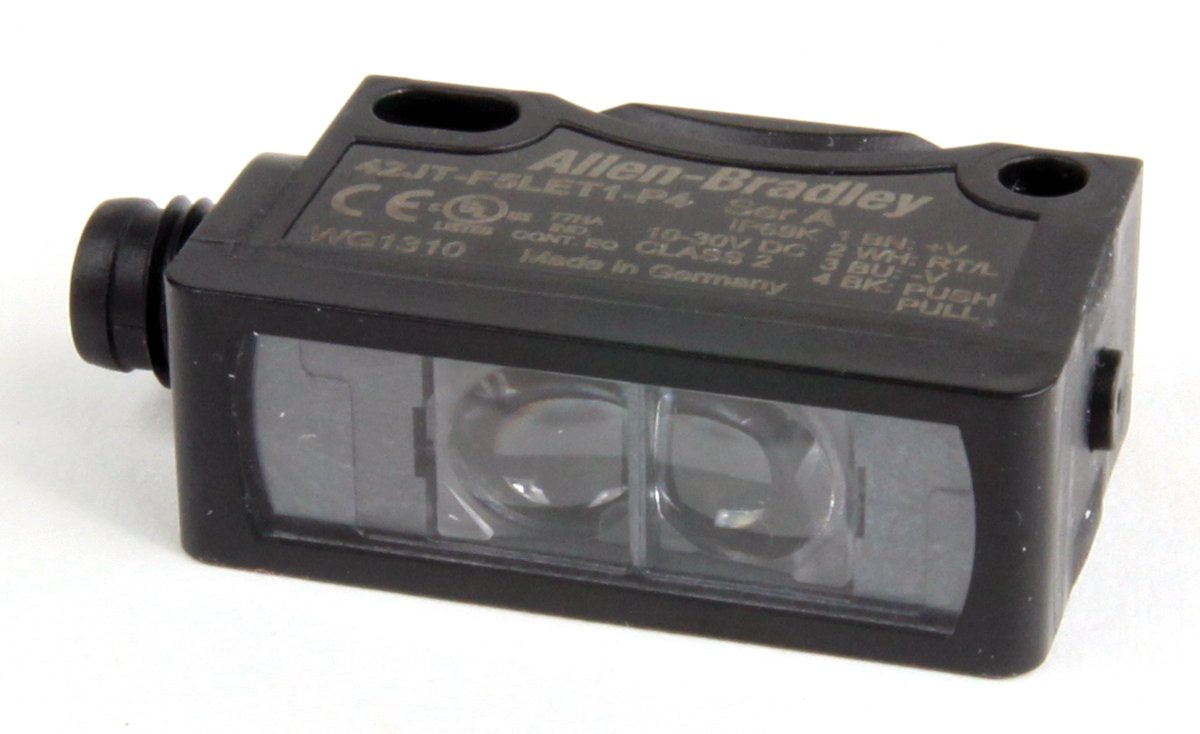

Allen Bradley Contrast Sensor, 10 to 30V DC Supply Voltage, 12mm Detection Range – 42JT-F5LET1-P4

Complete your manufacturing control system with this contrast sensor from Rockwell Automation’s Allen Bradley range. It detects differences in colour or contrast to efficiently identify or sort objects on production lines. It’s simple to teach the sensor what to recognise by using the built-in pushbutton. LED lights make it easy to see the device’s status during installation and operation. The settings are lockable to prevent tampering and remote configuration is possible thanks to the embedded IO-Link communication system.

• Ingress protection rating of IP67K means it’s dust-tight and resistant to powerful, high-temperature jets of water for use in harsh conditions
• Comes with built-in short-circuit protection for increased durability
• Suitable for cleaning with chemicals and disinfectants to keep it hygienic

Standards and Certifications

• CE (Conformitè Europëenne)
• cULus (Underwriters’ Laboratories)
• RoHS (Restriction of Hazardous Substances)

What type of output does this contrast sensor have?

This contrast sensor has a visible white status LED which can be configured with a positive or negative switching (PNP or NPN) output, so the light either comes on or goes off when an object is detected.
