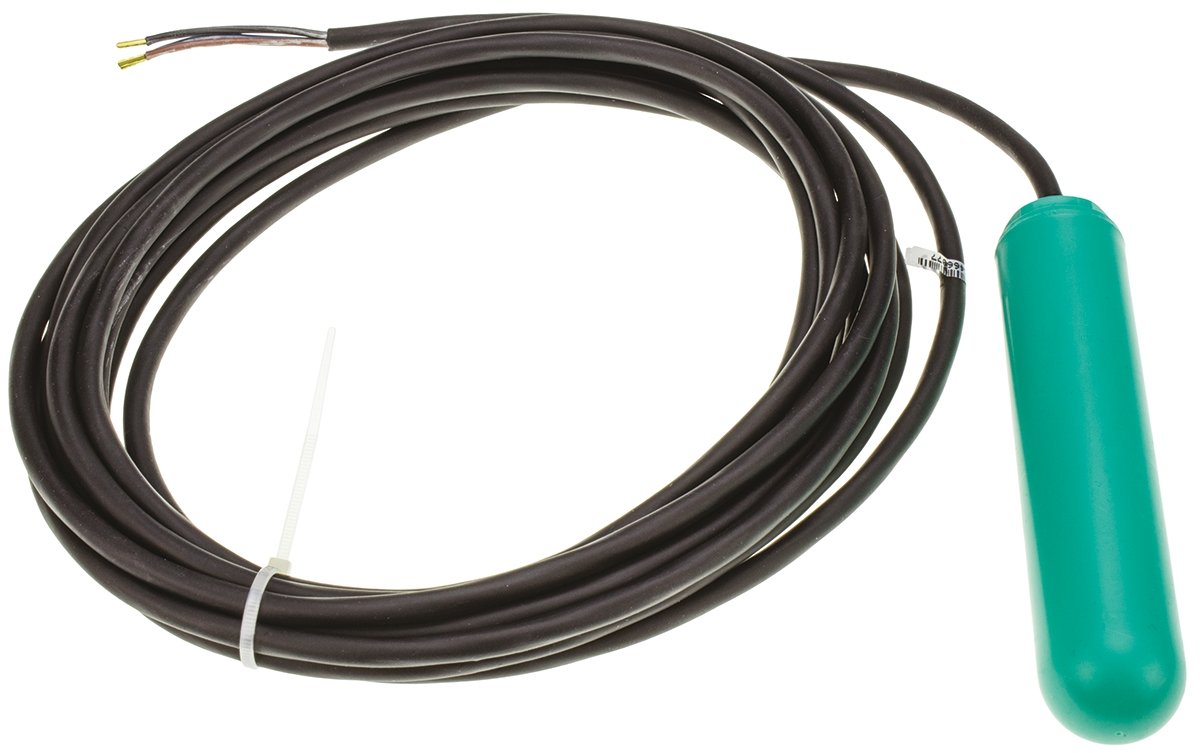

Pepperl + Fuchs LFL2-CK-U Cylindrical Float Switches
The LFL2-CK-U range of float switches from Pepperl + Fuchs are cylindrical float switches with a sleeve design. They each come with a 5m cable available in a choice of materials.
These float switches have a cylindrical sleeve design. Please refer to the list below for information on ball design options too.
The LFL2-CK-U float switches feature a switching element that, if it deviates from the horizontal position, activates a micro switch (change-over contact).
How is it mounted?
The LFL2-CK-U float switches can be mounted through the side of the tank, through a cable gland more than or equal to G1A.
How big is it?
The sleeve measures 135 x 29.2 mm. The cable is 5m long.
Versions Available:
(339-5238) – LFL2-CK-U-PVC5 – Sleeve with PVC Cable
(350-2060) – LFL2-CK-U-PUR5 – Sleeve with PUR Cable
(350-2076) – LFL2-CK-U-CSM5 – Sleeve with CSM Cable
(339-5244) – LFL2-BK-U-PVC5 – Ball with PVC Cable
(350-2082) – LFL2-BK-U-PUR5 – Ball with PUR Cable
(350-2098) – LFL2-BK-U-CSM5 – Ball with CSM Cable
