Industrial Schneider Electric TeSys LXEF Electrical Contactor, 100 → 250 V Coil, 1.25 kA, 500 → 680 W, 100 → 250 V

74LV Family, Texas Instruments

Low-Voltage CMOS logic
Operating Voltage: 2 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS

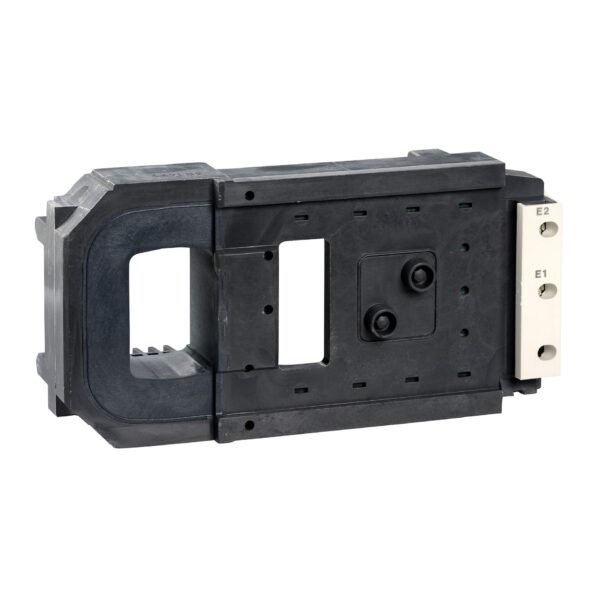

The Schneider Electric Specific Contactor Coil, device short name LXEFL, is compatible with TeSys F LC1F contactors and LA4EM electronic control modules. It fits product LC1F1250 and requires the complementary device LA4EM250FL. The tightening torque for the control circuit is 1.2 N·m. The control circuit type supports electronic AC at 50/60 Hz and DC. The control circuit voltage [Uc] ranges from 100 to 250 V AC (50/60 Hz) and 100 to 380 V DC.

Mechanical durability is 1 Mcycles
Maximum operating rate is 1200 cyc/h 55 °C
