Specs at a glance
Accuracy: class 2 acc. to IEC 60584
Response time: t50 = 1 s
t90 = 2 s
Max. process pressure (static): at 20 °C: 25 bar (363 psi)
Operating temperature range: Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 750 °C
(max. 1.382 °F)
Max. immersion length on request: up to 100.000,00 mm (3.937,01”)
—————————————-
Field of application
Endress Hauser’s

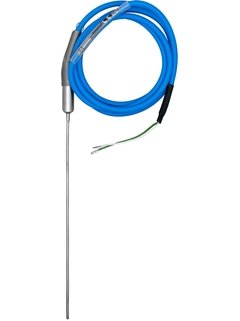

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.
