Specs at a glance
Accuracy: Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class standard acc. to ASTM E230
Class 2 acc. to IEC 60584-2
Response time: t90 around 100 s
depending on configuration
Max. process pressure (static): depending on the configuration
Operating temperature range: Basic PT100 TF:
-50 °C …200 °C
(-58 °F …392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request: up to 1.000,0 mm (39”)
—————————————-
Field of application

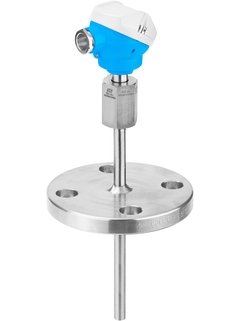

RTD or TC assembly characterized by basic sensor technology, application in non-hazardous areas, standard extension neck, low-cost unit. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.
• Universal range of application
• Application in non-hazardous areas
• Measuring range: –50 to +650 °C (–58 to +1202 °F)
• Pressure range up to 50 bar (725 psi)
• Degree of protection: up to IP 68
