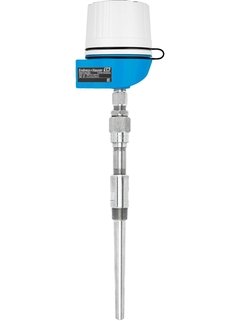

iTHERM ModuLine TM152 Industrial modular thermometer

Specs at a glance

Accuracy: Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time: depending on configuration
Max. process pressure (static): depending on the configuration up to 500 bar
Operating temperature range: PT100 TF iTHERM StrongSens:
-50 °C …500 °C
(-58 °F …932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C …600 °C
(-328 °F …1.112 °F)
PT100 basic TF:
-50 °C …200 °C
(-58 °F …392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request: 84″

—————————————-

Field of application

The modular industrial RTD or TC thermometer iTHERM ModuLine TM152 is complete with barstock thermowell or to be used with onsite thermowell. It is suitable for every application, from basic functionality to high-end performance in the chemical, oil & gas and power & energy industries.

• For universal use
• Measuring range: –200 to +1 100 °C (–328 to +2 012 °F)
• Pressure range: up to 500 bar (7 252 psi)
