Specs at a glance
Accuracy: class A acc. to IEC 60751
class AA acc. to IEC 60751
Response time: depending on configuration
iTHERM QuickSens: t90 = 1,5 s
iTHERM StrongSens: t90 = 9,5 s
Max. process pressure (static): at 20 °C: 40 bar (580 psi)
Operating temperature range: PT100:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
iTHERM StrongSens:
-50 °C … 500 °C
(-58 °F … 932 °F)
iTHERM QuickSens:
-50 °C … 200 °C
(-58 °F … 392 °F)
—————————————-
Field of application
Endress Hauser’s

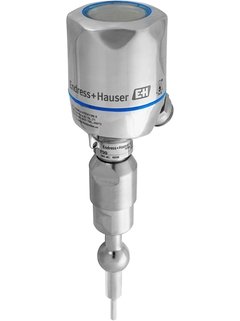

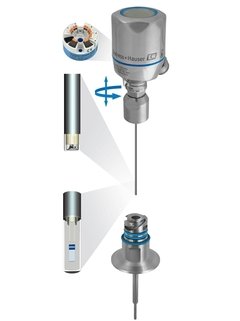

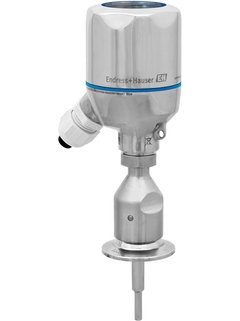

The modular sanitary thermometer iTHERM TM411 with digital display delivers highly accurate, reliable and fast temperature measurements in process lines, vessels, tanks, fermenters and more. The high-performance device is designed for the strictly regulated food and life sciences industries. Configure your hygienic instruments from a selection of thin film RTDs with QuickSens or StrongSens technology or 2x Pt100 wire wound temperature sensors, smart transmitters and hygienic process connections.
• Designed for use in hygienic and aseptic applications in food, beverage and life sciences
• Measuring range: –200 to 600 °C (-28 to 1 112 °F)
• Pressure range up to 40 bar (580 psi)
• Protection class: up to IP69K
• Remote parametrization with secure Bluetooth® temperature transmitters
• International approvals: Certified for use in hazardous areas, explosion protection as per ATEX/IECEx, CSA, FM, EAC Ex, JPN Ex, NEPSI; Hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
