Specs at a glance
Accuracy: class A acc. to IEC 60751
class AA acc. to IEC 60751
Response time: t50 = 2 s
t90 = 5 s
Max. process pressure (static): at 20 °C: 80 bar (1.160 psi)
Operating temperature range: PT100 TF iTHERM StrongSens:
-50 °C …500 °C
(-58 °F …932 °F)
PT100 WW:
-200 °C …600 °C
(-328 °F …1.112 °F)
PT100 TF:
-50 °C …400 °C
(-58 °F …752 °F)
Max. immersion length on request: up to 30.000,00 mm (1.181,10”)
—————————————-
Field of application
Endress Hauser’s

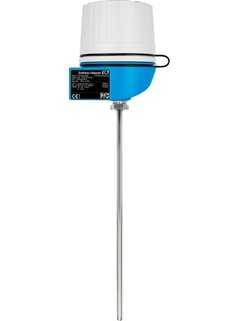

The robust thermometer designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. The sensor may be used in direct contact without thermowell or where the application requires it, spring load inside of a separate thermowell. Flexible configuration possible.
• Fine Chemicals
• Petrochemical industry
• Power stations
• Environmental engineering
• Measuring range: -200 to +600 °C (-328 to 1112 °F)
• Static pressure range up to 75 bar dependent on the used process connection
• Protection class: IP68
