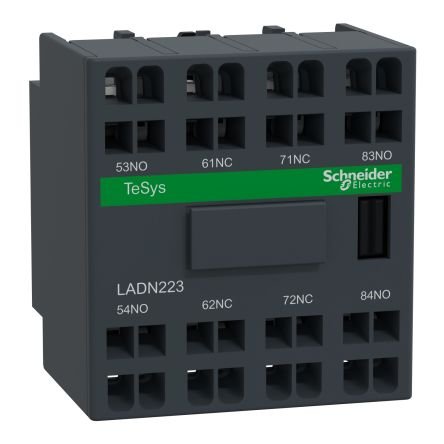

Tesys LADN Schneider Electric Auxiliary Contact Block, 4 Contact, 2NC + 2NO, Front Mount, LADN223

Schneider Electric LADN223TeSys Deca instantaneous auxiliary contact block, for contactors LC1D and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Features & Benefits
• Light weight of 50g puts minimal strain on equipment
• IP20 rating indicates the unit is touch-proof for improved electrical safety
• Wide operating temperature range of -5°C to +60°C for use in demanding conditions
• Sustainable product that requires no special disposal treatmentApplications
• Push button controllers
• Relay solid-state electronics
• Electric motors
• Factory control processesHow do auxiliary contact blocks work?As they’re connected to main contacts, auxiliary contact blocks change state in line with the main contacts and pass data to logical controllers to switch equipment on or off. It’s possible to use them as standalone units too.
