Specs at a glance
Process temperature: -60 °C…+280 °C
(-76 °F…+536 °F)
Process pressure / max. overpressure limit: Vacuum…100 bar
Vacuum…1450 psi
Min. density of medium: 0.5 g/cm³
(0.4 g/cm³ optional)
—————————————-
Field of application

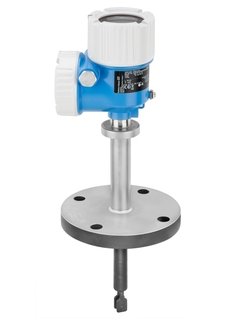

Liquiphant FTL64 has a strong focus on high temperature applications and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in applications with high temperatures and want a reliable and proven point level detection for tank overfill protection and pump dry run protection. The FTL64 is easy to use, has a digital connection and gives a real-time data at hand.
• Process temperature: -60 °C to +280°C (PFA coated: up to 230°C)
• Process pressure: -1 to +100bar (PFA coated: up to 40bar)
• Ambient temperature: -60 to +70°C
• Viscosity up to 10,000mm2/s (cSt)
• Optional PFA coating for aggressive media
• Process connections: threads, flanges and hygienic process connection (Tri-Clamp)
• International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Point level switch with extension tube for pumpable liquids
