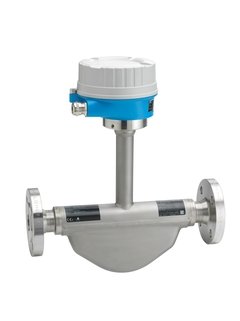

LNGmass Coriolis flowmeter

Specs at a glance

Max. measurement error: Mass flow (liquid): ±0.15 %
Volume flow (liquid): ±0.15 %
(Reference condition)
Measuring range: 0 to 18 000 kg/h (0 to 660 lb/min)
Medium temperature range: –196 to +125 °C (–320 to +257 °F)
Max. process pressure: PN 40, Class 300
Wetted materials: Measuring tubes: 1.4539 (904L)
Connection: 1.4404 (316/316L)

—————————————-

Field of application

LNGmass is a Coriolis flowmeter specifically developed for dispensers, guaranteeing highest accuracy and robustness at extreme subzero temperatures down to –196 °C (–321 °F). Due to the most compact design worldwide, the device can be installed anywhere, even in the narrowest space conditions without any problem. The LNGmass has no moving parts and is, therefore, absolutely maintenance-free.

• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of cryogenic gases in refueling applications
• Flow rates up to 18 000 kg/h (660 lb/min)
• Medium temperature down to –196 °C (–321 °F)
• Nominal diameter: DN 8 to 25 (3/8 to 1″)
• Robust, compact transmitter housing
• Modbus RS485
• Designed to meet application needs
