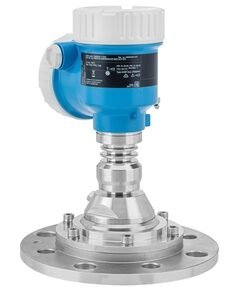

Micropilot FMR62B – 80 GHz radar sensor
Smart Safety for your process
Place your order
Specs at a glance
Accuracy: +/-1 mm (0.04 in)
Process temperature: -196 … +450 °C (-321 … +842 °F)
Process pressure / max. overpressure limit: Vacuum…160 bar (2320 psi)
Max. measurement distance: 80 m (262 ft)
Main wetted parts: 316L or PTFE (clad 316L flanges)
—————————————-
Field of application
Micropilot FMR62B is part of the new generation of 80 GHz radar sensors. It is used for continuous non-contact level measurement in challenging liquid applications. It masters process requirements like high temperatures, high process pressure as well as changing media. Testing concepts for SIL-locking and proof tests reduces the risk of systematic errors. Heartbeat Technology offers verification and monitoring functions to identify anomalies for increased safety and productivity.
• Process connections: Flanges
• Temperature: –196 to +450 °C (-320 to +842°F)
• Pressure: –1 bis +160 bar (-14.5 to 2320.6 psi)
• Maximum measuring range: 80 m (262.5 ft)
• Accuracy: ±1 mm (0.04 in)
• W-band: 80 GHz
• International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate
