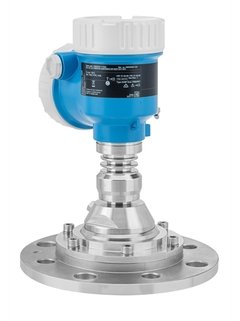

Micropilot FMR67B – 80 GHz radar sensor | Endress Hauser

Specs at a glance

Accuracy: +/- 3 mm (0.12 in)
Process temperature: -40 … +450 °C (-40 … +842 °F)
Process pressure / max. overpressure limit: Vacuum…160 bar (2320 psi)
Max. measurement distance: 125 m (410 ft)

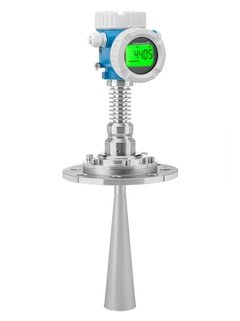

Main wetted parts: Horn antenna: 316L / 1.4404, Al2O3 (ceramic),

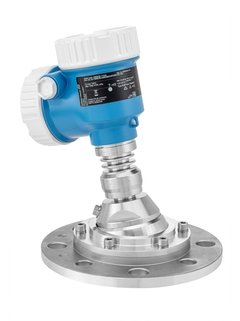

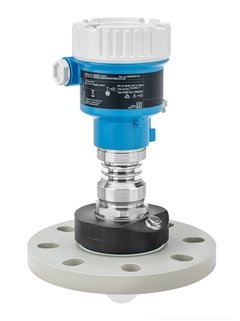

graphite Flush / Drip-off antenna: PTFE

—————————————-

Field of application

Endress Hauser’s

Micropilot FMR67B is part of the new generation of 80 GHz radar sensors. It is suitable for continuous non-contact level measurement in demanding solid applications – even with extreme process temperatures. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. The narrow beam angle is suitable for measurements in narrow silos. Heartbeat Technology identifies anomalies for increased safety and productivity.

• Process connections: Flanges
• Temperature: –40 to +450 °C (-40 to +842° F)
• Pressure: –1 to +160 bar (-14.5 to +2320.6 psi)
• Maximum measuring range: 125 m (1410 ft)
• Accuracy: ±3 mm (0.12 in)
• W-Band: 80 GHz
• International explosion protection certificates, SIL, 5- or 10-point factory calibration certificate
