Specs at a glance
Process temperature: Non-contact installation: any
Within installation:
-20°C … +60°C (-4°F … +140°F)
With high temperature adapter:
up to +450°C (+842°F)
Process pressure / max. overpressure limit: Non-contact installation: any
Within installation:
0.5 bar … 6.8 bar (7.2 psi … 99 psi) abs.
With high pressure adapter:
up to +21 bar (+305 psi) abs.
Min. density of medium: Solid weight: > 10 g/l
—————————————-
Field of application
Endress Hauser’s

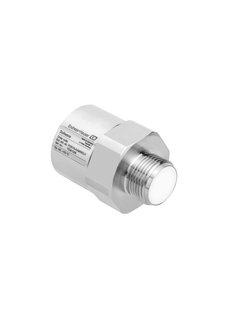

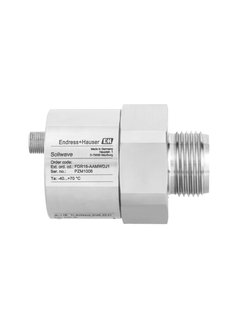

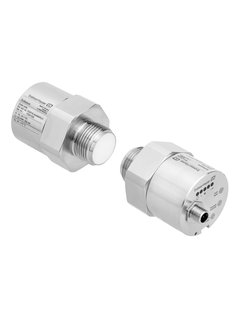

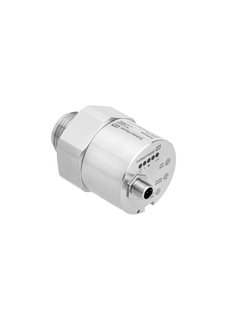

The Soliwave FDR16 is an ultra-compact transceiver for non-contact point level detection of bulk solids and liquids, as well as piece goods counting and object detection. The Soliwave FDR16 is used together with the FQR16. The microwave barrier works with a non-contact detection method and can also be used in applications with difficult-to-access or confined installation conditions due to its ultra-compact design. For non-metallic container materials, measurement from the outside is possible.
