Specs at a glance
Process temperature: Non-contact installation: any
Within installation:
-40°C … +70°C
(-40°F … +158°F)
With high temperature adapter:
up to +450°C (+842°F)
Process pressure / max. overpressure limit: Non-contact installation: any
Within installation:
0.5 bar … 6.8 bar
(7.2 psi … 99 psi) abs.
With high pressure adapter:
up to +21 bar (+305 psi) abs.
Min. density of medium: Solid weight: > 10 g/l
—————————————-
Field of application
Endress Hauser’s

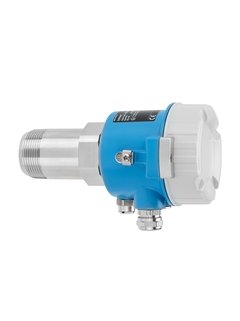

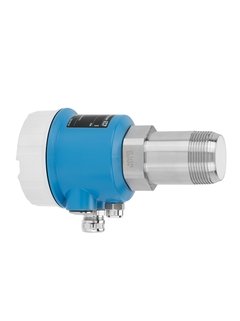

The Soliwave microwave barrier uses a non-contact procedure for detection of point levels and bulk flow (flow / no flow, trend). The device is also suitable for detecting and counting objects, detection of deposits as well as monitoring of filling processes and material transfer points. It can be installed in containers, conduits, hoppers, filling stations, shafts, filters or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside.
• Detecting, counting and positioning of objects
• Detection and analysis of deposits and contamination in filters
• Monitoring of filling processes
• Monitoring of material transfer points
• For high temperature applications up to 450°C (+842°F)
• For high pressure applications up to 20bar (+290psi)
• International explosion protection certificates
