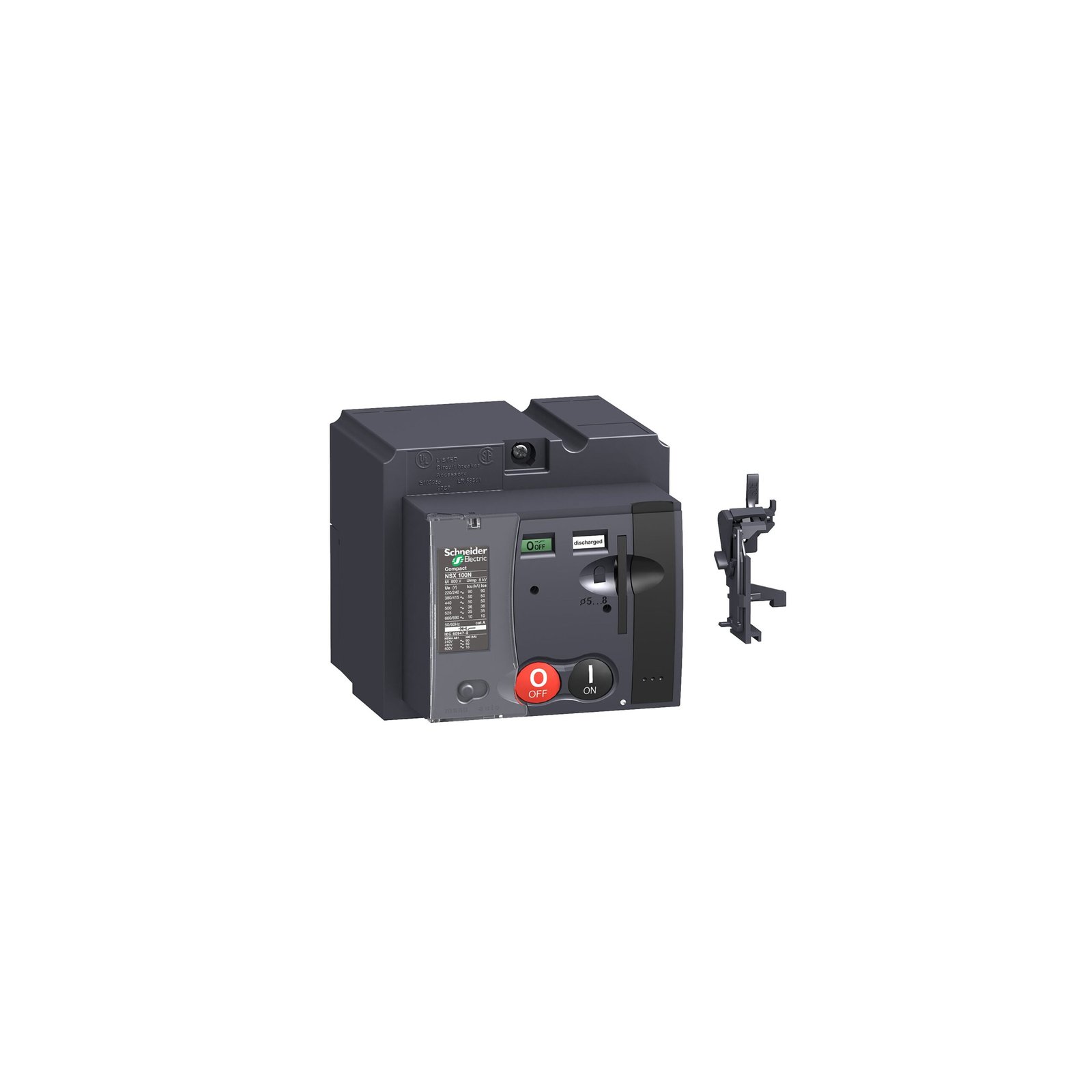

The Schneider Electric standard motor mechanism is for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 48VDC to 60VDC.
Control signal type Impulse maintained
Response time < 700 ms (opening), < 80 ms (closing)
Maximum operating frequency 4 per minute
