Specs at a glance
Max. measurement error: Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range: 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)
Medium temperature range: –20 to +150 °C (–4 to +302 °F)
Max. process pressure: PN 40, Class 150, 20K
Wetted materials: Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
—————————————-
Field of application
Endress Hauser’s

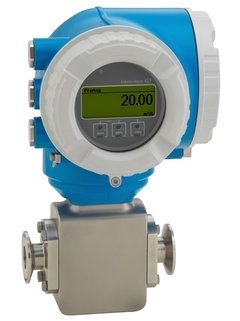

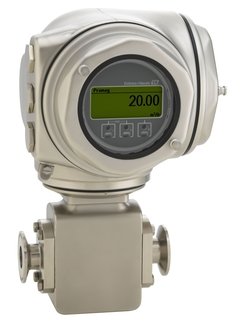

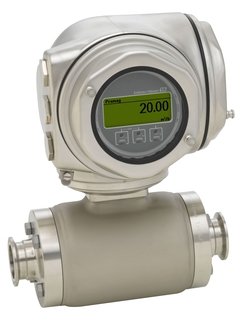

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its compact transmitter Promag H 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated to demanding applications in the food and beverage as well as in life sciences industries
• Liner made of PFA
• Sensor housing made of stainless steel (3A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Device properties
